Acronym ...

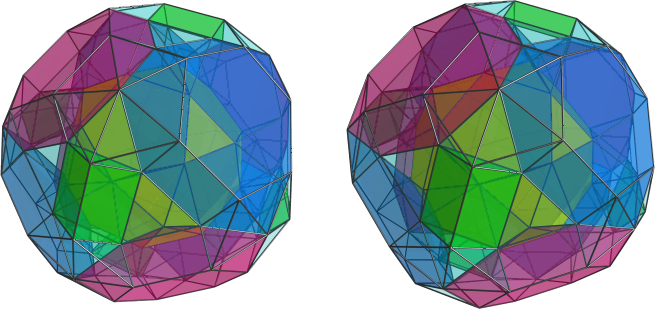

Name thawro pyrite,
octa-diminishing of id - srid - F-ike - ti tower

 ©
Circumradius ...
Face vector 138, 438, 418, 118
Confer
uniform relative:
rox
related segmentochora:
id || srid   srid || ti
related CRFs:
id || srid || F-ike || ti   {3} || thawro

This polychoron is derived from id || srid || F-ike || ti by application of a pyritohedrally symmetrical octa-diminishing, i.e. by chopping off eight {3} || thawro.


Incidence matrix

24 *  *  *  *  *  *  * |  2  1  1  1  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  2 1  1  2  1  1  1  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  2 1  1 0 0  0  0  0  0  0 0  layer1 (id)
 * 6  *  *  *  *  *  * |  0  0  4  0  0  4  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  2 0  2  0  0  4  0  2  2 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  2 0  2 1 0  0  0  0  0  0 0  layer1 (id)
 * * 24  *  *  *  *  * |  0  0  0  1  0  1  1  1  1  1  1  1  0  0  0  0  0  0  0  0  0 0 |  0 0  0  1  0  1  1  1  1 1  1  1  1  1  1  1  1  1  0  0  0  0  0 0  0  0 | 0  1 1  1 1 1  1  1  1  0  0 0  layer2 (srid w/o pyr. 3's)
 * *  * 12  *  *  *  * |  0  0  0  0  2  0  0  0  2  0  0  0  2  2  0  0  0  0  0  0  0 0 |  0 0  0  2  1  0  2  0  0 0  1  0  0  0  2  0  0  0  2  1  0  0  0 0  0  0 | 0  1 2  1 0 0  1  0  0  1  0 0  layer2 (srid w/o pyr. 3's)
 * *  *  * 12  *  *  * |  0  0  0  0  0  0  0  0  0  2  0  0  1  0  2  2  1  0  0  0  0 0 |  0 0  0  2  0  0  0  0  0 0  0  1  0  0  0  2  2  0  2  0  1  2  2 0  0  0 | 0  1 2  0 0 0  0  1  2  1  1 0  layer3 (F-ike)
 * *  *  *  * 24  *  * |  0  0  0  0  0  0  0  0  0  0  0  0  0  1  1  0  0  1  1  1  0 0 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  1  0  0  0  1  1  1  1  0 1  1  1 | 0  0 1  0 0 0  1  0  0  1  1 1  layer4 (ti)
 * *  *  *  *  * 24  * |  0  0  0  0  0  0  0  0  0  0  1  0  0  0  0  1  0  0  1  1  1 0 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  1  1  0  1  0  0  0  1  1 1  1  1 | 0  0 1  0 0 0  1  0  1  0  1 1  layer4 (ti)
 * *  *  *  *  *  * 12 |  0  0  0  0  0  0  0  0  0  0  0  2  0  0  0  0  1  0  0  0  2 1 |  0 0  0  0  0  0  0  0  0 0  0  0  2  1  0  0  2  2  0  0  0  0  2 0  2  1 | 0  0 0  0 0 1  2  1  2  0  1 1  layer4 (ti)
-----------------------+------------------------------------------------------------------+----------------------------------------------------------------------------+-------------------------------
 2 0  0  0  0  0  0  0 | 24  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  1 1  0  1  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  1 1  0 0 0  0  0  0  0  0 0  per cube-vertex
 2 0  0  0  0  0  0  0 |  * 12  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  1 0  1  0  1  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  1 0  1 0 0  0  0  0  0  0 0  per cube-edge
 1 1  0  0  0  0  0  0 |  *  * 24  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  1 0  1  0  0  1  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  1 0  1 0 0  0  0  0  0  0 0
 1 0  1  0  0  0  0  0 |  *  *  * 24  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  1  0  1  1  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 0  1 1  1 0 0  0  0  0  0  0 0
 1 0  0  1  0  0  0  0 |  *  *  *  * 24  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  1  1  0  1  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 0  1 1  1 0 0  0  0  0  0  0 0
 0 1  1  0  0  0  0  0 |  *  *  *  *  * 24  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  1  0  1  1 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 0  1 0  1 1 0  0  0  0  0  0 0
 0 0  2  0  0  0  0  0 |  *  *  *  *  *  * 12  *  *  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  0  0  1  0 1  0  1  0  1  0  0  0  0  0  0  0  0  0 0  0  0 | 0  1 0  0 1 1  0  1  0  0  0 0  5-4
 0 0  2  0  0  0  0  0 |  *  *  *  *  *  *  * 12  *  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  0  0  0  1 1  1  0  1  0  0  0  0  0  0  0  0  0  0 0  0  0 | 0  0 0  1 1 1  1  0  0  0  0 0  3-4
 0 0  1  1  0  0  0  0 |  *  *  *  *  *  *  *  * 24  *  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  0  1  0  0 0  1  0  0  0  1  0  0  0  0  0  0  0  0 0  0  0 | 0  0 1  1 0 0  1  0  0  0  0 0
 0 0  1  0  1  0  0  0 |  *  *  *  *  *  *  *  *  * 24  *  *  *  *  *  *  *  *  *  *  * * |  0 0  0  1  0  0  0  0  0 0  0  1  0  0  0  1  1  0  0  0  0  0  0 0  0  0 | 0  1 1  0 0 0  0  1  1  0  0 0
 0 0  1  0  0  0  1  0 |  *  *  *  *  *  *  *  *  *  * 24  *  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  1  1  0  1  0  0  0  0  0 0  0  0 | 0  0 1  0 0 0  1  0  1  0  0 0
 0 0  1  0  0  0  0  1 |  *  *  *  *  *  *  *  *  *  *  * 24  *  *  *  *  *  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  1  1  0  0  1  1  0  0  0  0  0 0  0  0 | 0  0 0  0 0 1  1  1  1  0  0 0
 0 0  0  1  1  0  0  0 |  *  *  *  *  *  *  *  *  *  *  *  * 12  *  *  *  *  *  *  *  * * |  0 0  0  2  0  0  0  0  0 0  0  0  0  0  0  0  0  0  2  0  0  0  0 0  0  0 | 0  1 2  0 0 0  0  0  0  1  0 0
 0 0  0  1  0  1  0  0 |  *  *  *  *  *  *  *  *  *  *  *  *  * 24  *  *  *  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  1  0  0  0  1  1  0  0  0 0  0  0 | 0  0 1  0 0 0  1  0  0  1  0 0
 0 0  0  0  1  1  0  0 |  *  *  *  *  *  *  *  *  *  *  *  *  *  * 24  *  *  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  1  0  1  1  0 0  0  0 | 0  0 1  0 0 0  0  0  0  1  1 0
 0 0  0  0  1  0  1  0 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 24  *  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  1  0  0  0  0  0  1  1 0  0  0 | 0  0 1  0 0 0  0  0  1  0  1 0
 0 0  0  0  1  0  0  1 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 12  *  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  2  0  0  0  0  0  2 0  0  0 | 0  0 0  0 0 0  0  1  2  0  1 0
 0 0  0  0  0  2  0  0 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 12  *  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  1  1  0  0 0  1  1 | 0  0 0  0 0 0  1  0  0  1  1 1
 0 0  0  0  0  1  1  0 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 24  *  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  1  0 1  0  1 | 0  0 1  0 0 0  0  0  0  0  1 1  5-6
 0 0  0  0  0  1  1  0 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 24  * * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  1  0  0  0  0  0  0  0  0 1  1  0 | 0  0 1  0 0 0  1  0  0  0  0 1  6-6
 0 0  0  0  0  0  1  1 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 24 * |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  1  0  0  0  0  1 0  1  1 | 0  0 0  0 0 0  1  0  1  0  1 1
 0 0  0  0  0  0  0  2 |  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  *  * 6 |  0 0  0  0  0  0  0  0  0 0  0  0  2  0  0  0  0  0  0  0  0  0  0 0  2  0 | 0  0 0  0 0 1  2  0  0  0  0 1
-----------------------+------------------------------------------------------------------+----------------------------------------------------------------------------+-------------------------------
 4 1  0  0  0  0  0  0 |  2  1  2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 | 12 *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 1  1 0  0 0 0  0  0  0  0  0 0
 3 0  0  0  0  0  0  0 |  3  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * 8  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 1  0 1  0 0 0  0  0  0  0  0 0
 2 1  0  0  0  0  0  0 |  0  1  2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * * 12  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 1  0 0  1 0 0  0  0  0  0  0 0
 2 0  1  1  1  0  0  0 |  1  0  0  1  1  0  0  0  0  1  0  0  1  0  0  0  0  0  0  0  0 0 |  * *  * 24  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  1 1  0 0 0  0  0  0  0  0 0
 2 0  0  1  0  0  0  0 |  0  1  0  0  2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  * 12  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  1 0  1 0 0  0  0  0  0  0 0
 1 1  1  0  0  0  0  0 |  0  0  1  1  0  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  * 24  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  1 0  1 0 0  0  0  0  0  0 0
 1 0  1  1  0  0  0  0 |  0  0  0  1  1  0  0  0  1  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  * 24  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  0 1  1 0 0  0  0  0  0  0 0
 0 1  2  0  0  0  0  0 |  0  0  0  0  0  2  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  * 12  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  1 0  0 1 0  0  0  0  0  0 0  teddi-squippy
 0 1  2  0  0  0  0  0 |  0  0  0  0  0  2  0  1  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  * 12 *  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  0 0  1 1 0  0  0  0  0  0 0  oct-squippy
 0 0  4  0  0  0  0  0 |  0  0  0  0  0  0  2  2  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * 6  *  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  0 0  0 1 1  0  0  0  0  0 0
 0 0  2  1  0  0  0  0 |  0  0  0  0  0  0  0  1  2  0  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * * 12  *  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  0 0  1 0 0  1  0  0  0  0 0
 0 0  2  0  1  0  0  0 |  0  0  0  0  0  0  1  0  0  2  0  0  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * *  * 12  *  *  *  *  *  *  *  *  *  *  * *  *  * | 0  1 0  0 0 0  0  1  0  0  0 0
 0 0  2  0  0  0  0  2 |  0  0  0  0  0  0  0  1  0  0  0  2  0  0  0  0  0  0  0  0  0 1 |  * *  *  *  *  *  *  *  * *  *  * 12  *  *  *  *  *  *  *  *  *  * *  *  * | 0  0 0  0 0 1  1  0  0  0  0 0
 0 0  2  0  0  0  0  1 |  0  0  0  0  0  0  1  0  0  0  0  2  0  0  0  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  * 12  *  *  *  *  *  *  *  *  * *  *  * | 0  0 0  0 0 1  0  1  0  0  0 0
 0 0  1  1  0  1  1  0 |  0  0  0  0  0  0  0  0  1  0  1  0  0  1  0  0  0  0  0  1  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  * 24  *  *  *  *  *  *  *  * *  *  * | 0  0 1  0 0 0  1  0  0  0  0 0
 0 0  1  0  1  0  1  0 |  0  0  0  0  0  0  0  0  0  1  1  0  0  0  0  1  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  * 24  *  *  *  *  *  *  * *  *  * | 0  0 1  0 0 0  0  0  1  0  0 0
 0 0  1  0  1  0  0  1 |  0  0  0  0  0  0  0  0  0  1  0  1  0  0  0  0  1  0  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  * 24  *  *  *  *  *  * *  *  * | 0  0 0  0 0 0  0  1  1  0  0 0
 0 0  1  0  0  0  1  1 |  0  0  0  0  0  0  0  0  0  0  1  1  0  0  0  0  0  0  0  0  1 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  * 24  *  *  *  *  * *  *  * | 0  0 0  0 0 0  1  0  1  0  0 0
 0 0  0  1  1  1  0  0 |  0  0  0  0  0  0  0  0  0  0  0  0  1  1  1  0  0  0  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  * 24  *  *  *  * *  *  * | 0  0 1  0 0 0  0  0  0  1  0 0
 0 0  0  1  0  2  0  0 |  0  0  0  0  0  0  0  0  0  0  0  0  0  2  0  0  0  1  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  * 12  *  *  * *  *  * | 0  0 0  0 0 0  1  0  0  1  0 0
 0 0  0  0  1  2  0  0 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  2  0  0  1  0  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  * 12  *  * *  *  * | 0  0 0  0 0 0  0  0  0  1  1 0
 0 0  0  0  1  1  1  0 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  1  1  0  0  1  0  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  * 24  * *  *  * | 0  0 1  0 0 0  0  0  0  0  1 0
 0 0  0  0  1  0  1  1 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  1  1  0  0  0  1 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  * 24 *  *  * | 0  0 0  0 0 0  0  0  1  0  1 0
 0 0  0  0  0  3  3  0 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  3  3  0 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * 8  *  * | 0  0 1  0 0 0  0  0  0  0  0 1
 0 0  0  0  0  2  2  2 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  1  0  2  2 1 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * * 12  * | 0  0 0  0 0 0  1  0  0  0  0 1
 0 0  0  0  0  2  2  1 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  1  2  0  2 0 |  * *  *  *  *  *  *  *  * *  *  *  *  *  *  *  *  *  *  *  *  *  * *  * 12 | 0  0 0  0 0 0  0  0  0  0  1 1
-----------------------+------------------------------------------------------------------+----------------------------------------------------------------------------+-------------------------------
24 6  0  0  0  0  0  0 | 24 12 24  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 0 | 12 8 12  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | 1  * *  * * *  *  *  *  *  * *  id
 4 1  2  1  1  0  0  0 |  2  1  2  2  2  2  1  0  0  2  0  0  1  0  0  0  0  0  0  0  0 0 |  1 0  0  2  1  2  0  1  0 0  0  1  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | * 12 *  * * *  *  *  *  *  * *  teddi
 3 0  3  3  3  3  3  0 |  3  0  0  3  3  0  0  0  3  3  3  0  3  3  3  3  0  0  3  3  0 0 |  0 1  0  3  0  0  3  0  0 0  0  0  0  0  3  3  0  0  3  0  0  3  0 1  0  0 | *  * 8  * * *  *  *  *  *  * *  thawro
 2 1  2  1  0  0  0  0 |  0  1  2  2  2  2  0  1  2  0  0  0  0  0  0  0  0  0  0  0  0 0 |  0 0  1  0  1  2  2  0  1 0  1  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | *  * * 12 * *  *  *  *  *  * *  oct
 0 1  4  0  0  0  0  0 |  0  0  0  0  0  4  2  2  0  0  0  0  0  0  0  0  0  0  0  0  0 0 |  0 0  0  0  0  0  0  2  2 1  0  0  0  0  0  0  0  0  0  0  0  0  0 0  0  0 | *  * *  * 6 *  *  *  *  *  * *  squippy
 0 0  4  0  0  0  0  2 |  0  0  0  0  0  0  2  2  0  0  0  4  0  0  0  0  0  0  0  0  0 1 |  0 0  0  0  0  0  0  0  0 1  0  0  2  2  0  0  0  0  0  0  0  0  0 0  0  0 | *  * *  * * 6  *  *  *  *  * *  trip
 0 0  2  1  0  2  2  2 |  0  0  0  0  0  0  0  1  2  0  2  2  0  2  0  0  0  1  0  2  2 1 |  0 0  0  0  0  0  0  0  0 0  1  0  1  0  2  0  0  2  0  1  0  0  0 0  1  0 | *  * *  * * * 12  *  *  *  * *  tricu
 0 0  2  0  1  0  0  1 |  0  0  0  0  0  0  1  0  0  2  0  2  0  0  0  0  1  0  0  0  0 0 |  0 0  0  0  0  0  0  0  0 0  0  1  0  1  0  0  2  0  0  0  0  0  0 0  0  0 | *  * *  * * *  * 12  *  *  * *  tet
 0 0  1  0  1  0  1  1 |  0  0  0  0  0  0  0  0  0  1  1  1  0  0  0  1  1  0  0  0  1 0 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  1  1  1  0  0  0  0  1 0  0  0 | *  * *  * * *  *  * 24  *  * *  tet
 0 0  0  1  1  2  0  0 |  0  0  0  0  0  0  0  0  0  0  0  0  1  2  2  0  0  1  0  0  0 0 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  2  1  1  0  0 0  0  0 | *  * *  * * *  *  *  * 12  * *  tet
 0 0  0  0  1  2  2  1 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  2  2  1  1  2  0  2 0 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  1  2  2 0  0  1 | *  * *  * * *  *  *  *  * 12 *  peppy
 0 0  0  0  0 24 24 12 |  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0 12 24 24 24 6 |  0 0  0  0  0  0  0  0  0 0  0  0  0  0  0  0  0  0  0  0  0  0  0 8 12 12 | *  * *  * * *  *  *  *  *  * 1  ti
