Acronym ...
Name id - srid - F-ike - ti tower,
thawro'd rox

 ©
Circumradius ...
Face vector 162, 630, 714, 246
Confer
uniform relative:
rox
related segmentochora:
id || srid   srid || ti   pappy
related CRFs:
thawro pyrite

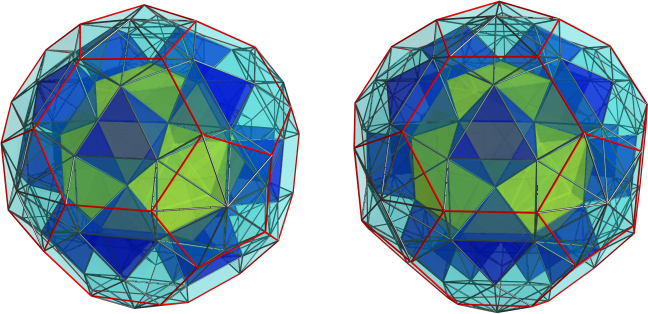

This polychoron is a special mixture out of a diminished, still tristratic ike-first segment of rox, i.e. oxFf3xooo5oxox&#x (this describes all but the largest vertex layer correctly) and the bistratic stack of the two segmentochora id || srid and srid || ti (that one misses the the additional vertices, which would transform the lower paps into pappies).

This polychoron is closely related to the thawro pyrite. Indeed, if an octahedral subset of triangles and all their direct incidences are removed, the sectioning facets underneath would be thawroes.


Incidence matrix according to Dynkin symbol

oxFx3xoox5oxoo&#xt   → height(1,2) = height(3,4) = 1/2
(F=ff=x+f)             height(2,3) = (sqrt(5)-1)/4 = 0.309017
(id || pseudo srid || pseudo F-ike || ti

o...3o...5o...    | 30  *  *  * |  4   4  0  0  0   0  0  0  0 |  2  2  2  4  2  0  0  0  0  0  0   0  0  0  0 | 1  2  1  2  0  0  0  0  0 0
.o..3.o..5.o..    |  * 60  *  * |  0   2  2  2  1   2  0  0  0 |  0  0  2  1  2  1  2  2  2  1  2   2  0  0  0 | 0  1  2  1  1  2  1  2  0 0
..o.3..o.5..o.    |  *  * 12  *   0   0  0  0  5   0  5  0  0 |  0  0  0  0  0  0  0  5  0  0  0  10  5  0  0 | 0  0  0  1  5  5  0  0  1 0
...o3...o5...o    |  *  *  * 60 |  0   0  0  0  0   2  1  1  2 |  0  0  0  0  0  0  0  0  2  2  1   2  2  2  1 | 0  0  0  0  2  1  2  1  1 1
------------------+-------------+------------------------------+-----------------------------------------------+----------------------------
.... x... ....    |  2  0  0  0 | 60   *  *  *  *   *  *  *  * |  1  1  0  1  0  0  0  0  0  0  0   0  0  0  0 | 1  1  0  1  0  0  0  0  0 0
oo..3oo..5oo..&#x |  1  1  0  0 |  * 120  *  *  *   *  *  *  * |  0  0  1  1  1  0  0  0  0  0  0   0  0  0  0 | 0  1  1  1  0  0  0  0  0 0
.x.. .... ....    |  0  2  0  0 |  *   * 60  *  *   *  *  *  * |  0  0  1  0  0  1  1  0  1  0  0   0  0  0  0 | 0  1  1  0  0  0  1  1  0 0
.... .... .x..    |  0  2  0  0 |  *   *  * 60  *   *  *  *  * |  0  0  0  0  1  0  1  1  0  0  0   0  0  0  0 | 0  0  1  1  0  1  0  1  0 0
.oo.3.oo.5.oo.&#x |  0  1  1  0 |  *   *  *  * 60   *  *  *  * |  0  0  0  0  0  0  0  2  0  0  0   2  0  0  0 | 0  0  0  1  1  2  0  0  0 0
.o.o3.o.o5.o.o&#x |  0  1  0  1 |  *   *  *  *  * 120  *  *  * |  0  0  0  0  0  0  0  0  1  1  1   1  0  0  0 | 0  0  0  0  1  1  1  1  0 0
..oo3..oo5..oo&#x |  0  0  1  1 |  *   *  *  *  *   * 60  *  * |  0  0  0  0  0  0  0  0  0  0  0   2  2  0  0 | 0  0  0  0  2  1  0  0  1 0
...x .... ....    |  0  0  0  2 |  *   *  *  *  *   *  * 30  * |  0  0  0  0  0  0  0  0  2  0  0   0  0  2  0 | 0  0  0  0  0  0  2  1  0 1
.... ...x ....    |  0  0  0  2 |  *   *  *  *  *   *  *  * 60 |  0  0  0  0  0  0  0  0  0  1  0   0  1  1  1 | 0  0  0  0  1  0  1  0  1 1
------------------+-------------+------------------------------+-----------------------------------------------+----------------------------
o...3x... ....    |  3  0  0  0 |  3   0  0  0  0   0  0  0  0 | 20  *  *  *  *  *  *  *  *  *  *   *  *  *  * | 1  1  0  0  0  0  0  0  0 0
.... x...5o...    |  5  0  0  0 |  5   0  0  0  0   0  0  0  0 |  * 12  *  *  *  *  *  *  *  *  *   *  *  *  * | 1  0  0  1  0  0  0  0  0 0
ox.. .... ....&#x |  1  2  0  0 |  0   2  1  0  0   0  0  0  0 |  *  * 60  *  *  *  *  *  *  *  *   *  *  *  * | 0  1  1  0  0  0  0  0  0 0
.... xo.. ....&#x |  2  1  0  0 |  1   2  0  0  0   0  0  0  0 |  *  *  * 60  *  *  *  *  *  *  *   *  *  *  * | 0  1  0  1  0  0  0  0  0 0
.... .... ox..&#x |  1  2  0  0 |  0   2  0  1  0   0  0  0  0 |  *  *  *  * 60  *  *  *  *  *  *   *  *  *  * | 0  0  1  1  0  0  0  0  0 0
.x..3.o.. ....    |  0  3  0  0 |  0   0  3  0  0   0  0  0  0 |  *  *  *  *  * 20  *  *  *  *  *   *  *  *  * | 0  1  0  0  0  0  1  0  0 0
.x.. .... .x..    |  0  4  0  0 |  0   0  2  2  0   0  0  0  0 |  *  *  *  *  *  * 30  *  *  *  *   *  *  *  * | 0  0  1  0  0  0  0  1  0 0
.... .... .xo.&#x |  0  2  1  0 |  0   0  0  1  2   0  0  0  0 |  *  *  *  *  *  *  * 60  *  *  *   *  *  *  * | 0  0  0  1  0  1  0  0  0 0
.x.x .... ....&#x |  0  2  0  2 |  0   0  1  0  0   2  0  1  0 |  *  *  *  *  *  *  *  * 60  *  *   *  *  *  * | 0  0  0  0  0  0  1  1  0 0
.... .o.x ....&#x |  0  1  0  2 |  0   0  0  0  0   2  0  0  1 |  *  *  *  *  *  *  *  *  * 60  *   *  *  *  * | 0  0  0  0  1  0  1  0  0 0
.... .... .x.o&#x |  0  2  0  1 |  0   0  0  1  0   2  0  0  0 |  *  *  *  *  *  *  *  *  *  * 60   *  *  *  * | 0  0  0  0  0  1  0  1  0 0
.ooo3.ooo5.ooo&#x |  0  1  1  1 |  0   0  0  0  1   1  1  0  0 |  *  *  *  *  *  *  *  *  *  *  * 120  *  *  * | 0  0  0  0  1  1  0  0  0 0
.... ..ox ....&#x |  0  0  1  2 |  0   0  0  0  0   0  2  0  1 |  *  *  *  *  *  *  *  *  *  *  *   * 60  *  * | 0  0  0  0  1  0  0  0  1 0
...x3...x ....    |  0  0  0  6 |  0   0  0  0  0   0  0  3  3 |  *  *  *  *  *  *  *  *  *  *  *   *  * 20  * | 0  0  0  0  0  0  1  0  0 1
.... ...x5...o    |  0  0  0  5 |  0   0  0  0  0   0  0  0  5 |  *  *  *  *  *  *  *  *  *  *  *   *  *  * 12 | 0  0  0  0  0  0  0  0  1 1
------------------+-------------+------------------------------+-----------------------------------------------+----------------------------
o...3x...5o...     30  0  0  0 | 60   0  0  0  0   0  0  0  0 | 20 12  0  0  0  0  0  0  0  0  0   0  0  0  0 | 1  *  *  *  *  *  *  *  * *
ox..3xo.. ....&#x   3  3  0  0 |  3   6  3  0  0   0  0  0  0 |  1  0  3  3  0  1  0  0  0  0  0   0  0  0  0 | * 20  *  *  *  *  *  *  * *
ox.. .... ox..&#x   1  4  0  0 |  0   4  2  2  0   0  0  0  0 |  0  0  2  0  2  0  1  0  0  0  0   0  0  0  0 | *  * 30  *  *  *  *  *  * *
.... xoo.5oxo.&#x   5  5  1  0 |  5  10  0  5  5   0  0  0  0 |  0  1  0  5  5  0  0  5  0  0  0   0  0  0  0 | *  *  * 12  *  *  *  *  * *
.... .oox ....&#x   0  1  1  2 |  0   0  0  0  1   2  2  0  1 |  0  0  0  0  0  0  0  0  0  1  0   2  1  0  0 | *  *  *  * 60  *  *  *  * *
.... .... .xoo&#x   0  2  1  1 |  0   0  0  1  2   2  1  0  0 |  0  0  0  0  0  0  0  1  0  0  1   2  0  0  0 | *  *  *  *  * 60  *  *  * *
.x.x3.o.x ....&#x   0  3  0  6 |  0   0  3  0  0   6  0  3  3 |  0  0  0  0  0  1  0  0  3  3  0   0  0  1  0 | *  *  *  *  *  * 20  *  * *
.x.x .... .x.o&#x   0  4  0  2 |  0   0  2  2  0   4  0  1  0 |  0  0  0  0  0  0  1  0  2  0  2   0  0  0  0 | *  *  *  *  *  *  * 30  * *
.... ..ox5..oo&#x   0  0  1  5 |  0   0  0  0  0   0  5  0  5 |  0  0  0  0  0  0  0  0  0  0  0   0  5  0  1 | *  *  *  *  *  *  *  * 12 *
...x3...x5...o      0  0  0 60 |  0   0  0  0  0   0  0 30 60 |  0  0  0  0  0  0  0  0  0  0  0   0  0 20 12 | *  *  *  *  *  *  *  *  * 1
