Acronym tabene
Name rectified-icositetrachoron dual,
trigonal-bipyramidal enneacontahexachoron,
surtegmated icositetrachoron
Dual rico

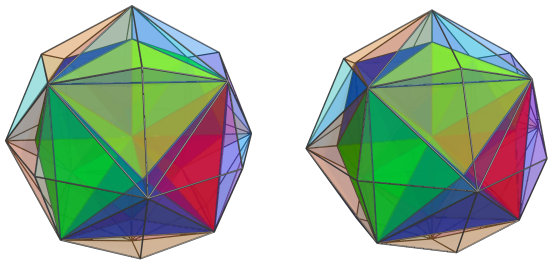

This polychoron can be obtained from the compound of a unit ico and a scaled dual ico, when choosing the edge center radius of the first ico and the triangle center radius of second ico to be equal. Then the convex hull therefrom results in this polychoron, and the edges of the former resp. the orthogonal triangles of the latter will serve as diametrals of the cells of this hull polychoron.

All c edges, provided in the below description, only qualify as pseudo edges wrt. the full polychoron. In fact those are the tip-to-tip diametrals of the cells, which all are identical co oo3ox&#zy bipyramids.

Because o3m4o3o is derived by some secondary process only (rectification followed by dualisation), instead of a primary Wythoff construction, it is much more remarkable that it still allows for rectification (oa3oo4bo3oc&zx). This is because the truncational depth of the second vertex type (in the below incidence matrix) for a rectification scenario is easily settled at the second edge type (providing the mid points at those x-edges). But then the same truncational hyperplanes would define corresponding intersection points on the y-edges as well. And those points then could be matched in a rectificational sense by truncation hyperplanes of according depth wrt. the first vertex set.


Incidence matrix according to Dynkin symbol

o3m4o3o =
co3oo4oo3ox&#zy   → height = 0
                    c = sqrt(8)/3 = 0.942809
                    y = sqrt(5)/3 = 0.745356

o.3o.4o.3o.     | 24  *    6  0 |  12 |  8
.o3.o4.o3.o     |  * 24    6  8 |  24 | 12
----------------+-------+--------+-----+---
oo3oo4oo3oo&#y  |  1  1 | 144  * |   4 |  4
.. .. .. .x     |  0  2 |   * 96 |   3 |  3
----------------+-------+--------+-----+---
.. .. .. ox&#y  |  1  2 |   2  1 | 288 |  2
----------------+-------+--------+-----+---
co .. oo3ox&#zy   2  3 |   6  3 |   6 | 96
