Acronym prahi
Name prismatorhombated hecatonicosachoron,
runcitruncated hexacosachoron
Circumradius sqrt[35+15 sqrt(5)] = 8.278950

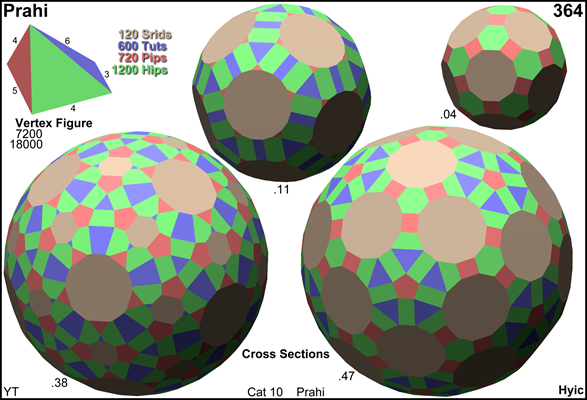

Vertex figure
 ©
General of army (is itself convex)
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: grid hip pip saddid sird srid tut
sripady 12012000012000
spixady 120072012000600
prahi 0120072000120600
)
Dihedral angles
  • at {6} between hip and tut:   arccos(-sqrt[9+3 sqrt(5)]/4) = 172.238756°
  • at {4} between hip and pip:   arccos(-sqrt[(10+2 sqrt(5))/15]) = 169.187683°
  • at {5} between pip and srid:   162°
  • at {4} between hip and srid:   arccos(-sqrt[(3+sqrt(5))/6]) = 159.094843°
  • at {3} between srid and tut:   arccos(-sqrt[7+3 sqrt(5)]/4) = 157.761244°
Face vector 7200, 18000, 13440, 2640
Confer
Grünbaumian relatives:
2prahi
related CRFs:
sridagridtum
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   wikipedia   polytopewiki   WikiChoron   quickfur

As abstract polytope prahi is isomorphic to paqrigagishi, thereby replacing the pentagons by pentagrams, resp. replacing srid by qrid and replacing pip by stip.


Incidence matrix according to Dynkin symbol

x3x3o5x

. . . . | 7200 |    1    2    2 |    2    2    1    2    1 |   1    2   1   1
--------+------+----------------+--------------------------+-----------------
x . . . |    2 | 3600    *    * |    2    2    0    0    0 |   1    2   1   0
. x . . |    2 |    * 7200    * |    1    0    1    1    0 |   1    1   0   1
. . . x |    2 |    *    * 7200 |    0    1    0    1    1 |   0    1   1   1
--------+------+----------------+--------------------------+-----------------
x3x . . |    6 |    3    3    0 | 2400    *    *    *    * |   1    1   0   0
x . . x |    4 |    2    0    2 |    * 3600    *    *    * |   0    1   1   0
. x3o . |    3 |    0    3    0 |    *    * 2400    *    * |   1    0   0   1
. x . x |    4 |    0    2    2 |    *    *    * 3600    * |   0    1   0   1
. . o5x |    5 |    0    0    5 |    *    *    *    * 1440 |   0    0   1   1
--------+------+----------------+--------------------------+-----------------
x3x3o .    12 |    6   12    0 |    4    0    4    0    0 | 600    *   *   *
x3x . x    12 |    6    6    6 |    2    3    0    3    0 |   * 1200   *   *
x . o5x    10 |    5    0   10 |    0    5    0    0    2 |   *    * 720   *
. x3o5x    60 |    0   60   60 |    0    0   20   30   12 |   *    *   * 120

snubbed forms: β3x3o5x, x3β3o5x, x3x3o5β, β3β3o5x, β3x3o5β, x3β3o5β, β3β3o5β

x3x3/2o5/4x

. .   .   . | 7200 |    1    2    2 |    2    2    1    2    1 |   1    2   1   1
------------+------+----------------+--------------------------+-----------------
x .   .   . |    2 | 3600    *    * |    2    2    0    0    0 |   1    2   1   0
. x   .   . |    2 |    * 7200    * |    1    0    1    1    0 |   1    1   0   1
. .   .   x |    2 |    *    * 7200 |    0    1    0    1    1 |   0    1   1   1
------------+------+----------------+--------------------------+-----------------
x3x   .   . |    6 |    3    3    0 | 2400    *    *    *    * |   1    1   0   0
x .   .   x |    4 |    2    0    2 |    * 3600    *    *    * |   0    1   1   0
. x3/2o   . |    3 |    0    3    0 |    *    * 2400    *    * |   1    0   0   1
. x   .   x |    4 |    0    2    2 |    *    *    * 3600    * |   0    1   0   1
. .   o5/4x |    5 |    0    0    5 |    *    *    *    * 1440 |   0    0   1   1
------------+------+----------------+--------------------------+-----------------
x3x3/2o   .    12 |    6   12    0 |    4    0    4    0    0 | 600    *   *   *
x3x   .   x    12 |    6    6    6 |    2    3    0    3    0 |   * 1200   *   *
x .   o5/4x    10 |    5    0   10 |    0    5    0    0    2 |   *    * 720   *
. x3/2o5/4x    60 |    0   60   60 |    0    0   20   30   12 |   *    *   * 120
