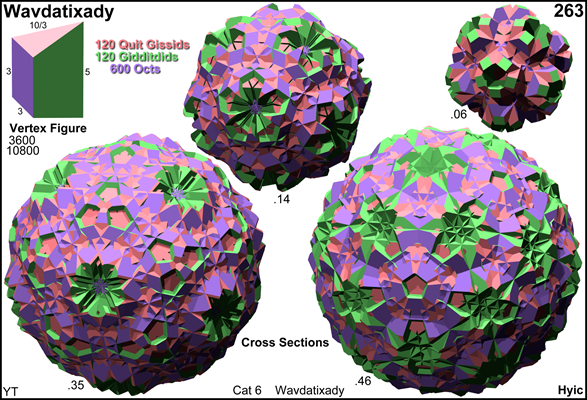

Acronym wavdatixady
Name sphenoverted ditrigonary hexacosadishecatonicosachoron
Circumradius sqrt[15-6 sqrt(5)] = 1.258409
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gidditdid giid oct quit gissid tut
wavdatixady 12006001200
rawvhiddix 01206000600
& others)
Face vector 3600, 10800, 6960, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope wavdatixady is isomorphic to rawvid tixady, thereby replacing pentagons by pentagrams and decagrams by decagons, respectively quit gissid by tid and gidditdid by sidditdid.


Incidence matrix according to Dynkin symbol

o3x3o5x5/3*b

. . . .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-------------+------+-----------+--------------------+------------
. x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . . x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-------------+------+-----------+--------------------+------------
o3x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3o .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x . x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. . o5x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o3x3o .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3x . x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3o5x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3x3/2o5/4x5/3*b

. .   .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-----------------+------+-----------+--------------------+------------
. x   .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. .   .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-----------------+------+-----------+--------------------+------------
o3x   .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3/2o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x   .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. .   o5/4x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o3x3/2o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3x   .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3/2o5/4x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3o5x5/3*b

.   . . .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
---------------+------+-----------+--------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . . x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
---------------+------+-----------+--------------------+------------
o3/2x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3o .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x . x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   . o5x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3/2x3o .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x . x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3o5x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3/2o5/4x5/3*b

.   .   .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-------------------+------+-----------+--------------------+------------
.   x   .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   .   .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-------------------+------+-----------+--------------------+------------
o3/2x   .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3/2o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x   .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   .   o5/4x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------------+------+-----------+--------------------+------------
o3/2x3/2o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x   .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3/2o5/4x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120
