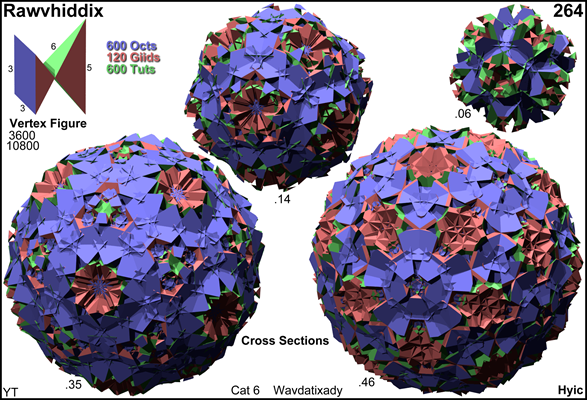

Acronym rawvhiddix
Name retrosphenoverted hecatonicosadishexacosachoron
Circumradius sqrt[15-6 sqrt(5)] = 1.258409
Colonel of regiment wavdatixady
Face vector 3600, 10800, 7920, 1320
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope rawvhiddix is isomorphic to wavhiddix, thereby replacing pentagons by pentagrams, respectively giid by siid. – As such rawvhiddix is a lieutenant.


Incidence matrix according to Dynkin symbol

o3x3x5o3/2*b

. . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-------------+------+-----------+--------------------+------------
. x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-------------+------+-----------+--------------------+------------
o3x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x . o3/2*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
. . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o3x3x .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3x . o3/2*b     6 |   12    0 |    4    0    4   0 |   * 600   *
. x3x5o3/2*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o3x3x5/4o3*b

. . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-------------+------+-----------+--------------------+------------
. x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-------------+------+-----------+--------------------+------------
o3x .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x .   o3*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
. . x5/4o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o3x3x   .       12 |   12    6 |    4    4    0   0 | 600   *   *
o3x .   o3*b     6 |   12    0 |    4    0    4   0 |   * 600   *
. x3x5/4o3*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o3/2x3x5o3/2*b

.   . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o3/2x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x . o3/2*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3/2x3x .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3/2x . o3/2*b     6 |   12    0 |    4    0    4   0 |   * 600   *
.   x3x5o3/2*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o3/2x3x5/4o3*b

.   . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o3/2x .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o3*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5/4o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3/2x3x   .       12 |   12    6 |    4    4    0   0 | 600   *   *
o3/2x .   o3*b     6 |   12    0 |    4    0    4   0 |   * 600   *
.   x3x5/4o3*b    60 |   60   60 |    0   20   20  12 |   *   * 120
