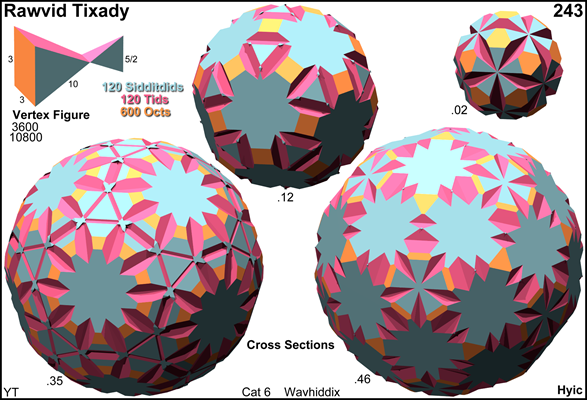

Acronym rawvid tixady
Name retrosphenoverted ditrigonary hexacosadishecatonicosachoron
Circumradius sqrt[15+6 sqrt(5)] = 5.330704
Colonel of regiment wavhiddix
Face vector 3600, 10800, 6960, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope rawvid tixady is isomorphic to wavdatixady, thereby replacing pentagrams by pentagons and decagons by decagrams, respectively tid by quit gissid and sidditdid by gidditdid. – As such rawvid tixady is a lieutenant.


Incidence matrix according to Dynkin symbol

o3x3o5/3x5*b

. . .   .    | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-------------+------+-----------+--------------------+------------
. x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . .   x    |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-------------+------+-----------+--------------------+------------
o3x .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3o   .    |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x .   x5*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. . o5/3x    |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o3x3o   .        6 |   12    0 |    4    4    0   0 | 600   *   *
o3x .   x5*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3o5/3x5*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3x3/2o5/2x5*b

. .   .   .    | 3600 |    4    2 |    2    2    4   1 |   1   2   2
---------------+------+-----------+--------------------+------------
. x   .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
. .   .   x    |    2 |    * 3600 |    0    0    2   1 |   0   1   2
---------------+------+-----------+--------------------+------------
o3x   .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3/2o   .    |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x   .   x5*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. .   o5/2x    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3x3/2o   .        6 |   12    0 |    4    4    0   0 | 600   *   *
o3x   .   x5*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3/2o5/2x5*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3o5/3x5*b

.   . .   .    | 3600 |    4    2 |    2    2    4   1 |   1   2   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . .   x    |    2 |    * 3600 |    0    0    2   1 |   0   1   2
---------------+------+-----------+--------------------+------------
o3/2x .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3o   .    |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x .   x5*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   . o5/3x    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3/2x3o   .        6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x .   x5*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3o5/3x5*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3/2o5/2x5*b

.   .   .   .    | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-----------------+------+-----------+--------------------+------------
.   x   .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   .   .   x    |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-----------------+------+-----------+--------------------+------------
o3/2x   .   .    |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3/2o   .    |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x   .   x5*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   .   o5/2x    |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o3/2x3/2o   .        6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x   .   x5*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3/2o5/2x5*b    60 |   60   60 |    0   20   12  12 |   *   * 120
