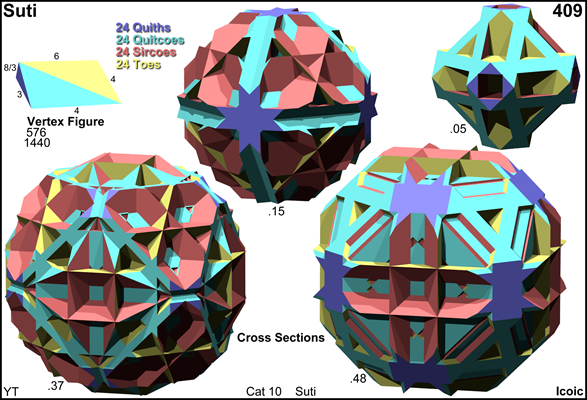

Acronym suti
Name small tetrakisicositetrachoron
Circumradius sqrt[4-sqrt(2)] = 1.608038
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: cotco quitco quith sirco socco toe
suti 0242424024
diquitdi 2402402424
& others)
Face vector 576, 1440, 960, 96
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   WikiChoron

As abstract polytope suti is isomorphic to guti, thereby replacing octagrams by octagons, and thus quith by tic, quitco by girco and additionally sirco by querco.


Incidence matrix according to Dynkin symbol

x3o4x3x4/3*a

. . . .      | 576 |   2   2   1 |   1   2   2   1   2 |  1  1  2  1
-------------+-----+-------------+---------------------+------------
x . . .      |   2 | 576   *   * |   1   1   1   0   0 |  1  1  1  0
. . x .      |   2 |   * 576   * |   0   1   0   1   1 |  1  0  1  1
. . . x      |   2 |   *   * 288 |   0   0   2   0   2 |  0  1  2  1
-------------+-----+-------------+---------------------+------------
x3o . .      |   3 |   3   0   0 | 192   *   *   *   * |  1  1  0  0
x . x .      |   4 |   2   2   0 |   * 288   *   *   * |  1  0  1  0
x . . x4/3*a |   8 |   4   0   4 |   *   * 144   *   * |  0  1  1  0
. o4x .      |   4 |   0   4   0 |   *   *   * 144   * |  1  0  0  1
. . x3x      |   6 |   0   3   3 |   *   *   *   * 192 |  0  0  1  1
-------------+-----+-------------+---------------------+------------
x3o4x .        24 |  24  24   0 |   8  12   0   6   0 | 24  *  *  *
x3o . x4/3*a   24 |  24   0  12 |   8   0   6   0   0 |  * 24  *  *
x . x3x4/3*a   48 |  24  24  24 |   0  12   6   0   8 |  *  * 24  *
. o4x3x        24 |   0  24  12 |   0   0   0   6   8 |  *  *  * 24

x3/2o4/3x3x4/3*a

.   .   . .      | 576 |   2   2   1 |   1   2   2   1   2 |  1  1  2  1
-----------------+-----+-------------+---------------------+------------
x   .   . .      |   2 | 576   *   * |   1   1   1   0   0 |  1  1  1  0
.   .   x .      |   2 |   * 576   * |   0   1   0   1   1 |  1  0  1  1
.   .   . x      |   2 |   *   * 288 |   0   0   2   0   2 |  0  1  2  1
-----------------+-----+-------------+---------------------+------------
x3/2o   . .      |   3 |   3   0   0 | 192   *   *   *   * |  1  1  0  0
x   .   x .      |   4 |   2   2   0 |   * 288   *   *   * |  1  0  1  0
x   .   . x4/3*a |   8 |   4   0   4 |   *   * 144   *   * |  0  1  1  0
.   o4/3x .      |   4 |   0   4   0 |   *   *   * 144   * |  1  0  0  1
.   .   x3x      |   6 |   0   3   3 |   *   *   *   * 192 |  0  0  1  1
-----------------+-----+-------------+---------------------+------------
x3/2o4/3x .        24 |  24  24   0 |   8  12   0   6   0 | 24  *  *  *
x3/2o   . x4/3*a   24 |  24   0  12 |   8   0   6   0   0 |  * 24  *  *
x   .   x3x4/3*a   48 |  24  24  24 |   0  12   6   0   8 |  *  * 24  *
.   o4/3x3x        24 |   0  24  12 |   0   0   0   6   8 |  *  *  * 24
