Acronym riggidtixhi
Name rectified great ditrigonary hexacosihecatonicosachoron

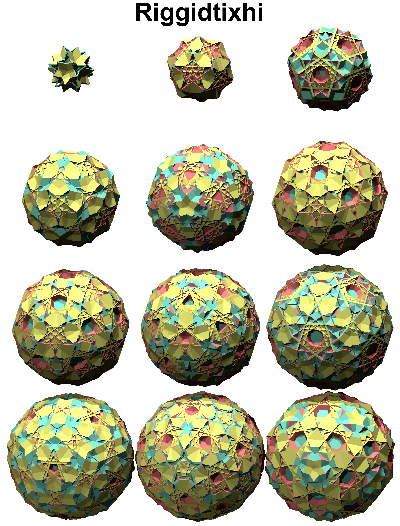

Cross sections
 ©
Circumradius sqrt(3) = 1.732051
General of army rahi
Colonel of regiment rissidtixhi
Face vector 1200, 7200, 6420, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope riggidtixhi is isomorphic to rissidtixhi, thereby replacing the pentagons by pentagrams, resp. replacing the id by gid and the gidtid by sidtid. – As such riggidtixhi is a lieutenant.


Incidence matrix according to Dynkin symbol

o3x3o3o5/4*b

. . . .      | 1200 |   12 |    6    6    6 |   3   3   2
-------------+------+------+----------------+------------
. x . .      |    2 | 7200 |    1    1    1 |   1   1   1
-------------+------+------+----------------+------------
o3x . .      |    3 |    3 | 2400    *    * |   1   1   0
. x3o .      |    3 |    3 |    * 2400    * |   1   0   1
. x . o5/4*b |    5 |    5 |    *    * 1440 |   0   1   1
-------------+------+------+----------------+------------
o3x3o .          6 |   12 |    4    4    0 | 600   *   *
o3x . o5/4*b    30 |   60 |   20    0   12 |   * 120   *
. x3o3o5/4*b    20 |   60 |    0   20   12 |   *   * 120

o3x3o3/2o5*b

. . .   .    | 1200 |   12 |    6    6    6 |   3   3   2
-------------+------+------+----------------+------------
. x .   .    |    2 | 7200 |    1    1    1 |   1   1   1
-------------+------+------+----------------+------------
o3x .   .    |    3 |    3 | 2400    *    * |   1   1   0
. x3o   .    |    3 |    3 |    * 2400    * |   1   0   1
. x .   o5*b |    5 |    5 |    *    * 1440 |   0   1   1
-------------+------+------+----------------+------------
o3x3o   .        6 |   12 |    4    4    0 | 600   *   *
o3x .   o5*b    30 |   60 |   20    0   12 |   * 120   *
. x3o3/2o5*b    20 |   60 |    0   20   12 |   *   * 120

o3x3/2o3o5*b

. .   . .    | 1200 |   12 |    6    6    6 |   3   3   2
-------------+------+------+----------------+------------
. x   . .    |    2 | 7200 |    1    1    1 |   1   1   1
-------------+------+------+----------------+------------
o3x   . .    |    3 |    3 | 2400    *    * |   1   1   0
. x3/2o .    |    3 |    3 |    * 2400    * |   1   0   1
. x   . o5*b |    5 |    5 |    *    * 1440 |   0   1   1
-------------+------+------+----------------+------------
o3x3/2o .        6 |   12 |    4    4    0 | 600   *   *
o3x   . o5*b    30 |   60 |   20    0   12 |   * 120   *
. x3/2o3o5*b    20 |   60 |    0   20   12 |   *   * 120

o3x3/2o3/2o5/4*b

. .   .   .      | 1200 |   12 |    6    6    6 |   3   3   2
-----------------+------+------+----------------+------------
. x   .   .      |    2 | 7200 |    1    1    1 |   1   1   1
-----------------+------+------+----------------+------------
o3x   .   .      |    3 |    3 | 2400    *    * |   1   1   0
. x3/2o   .      |    3 |    3 |    * 2400    * |   1   0   1
. x   .   o5/4*b |    5 |    5 |    *    * 1440 |   0   1   1
-----------------+------+------+----------------+------------
o3x3/2o   .          6 |   12 |    4    4    0 | 600   *   *
o3x   .   o5/4*b    30 |   60 |   20    0   12 |   * 120   *
. x3/2o3/2o5/4*b    20 |   60 |    0   20   12 |   *   * 120

o3/2x3o3o5/4*b

.   . . .      | 1200 |   12 |    6    6    6 |   3   3   2
---------------+------+------+----------------+------------
.   x . .      |    2 | 7200 |    1    1    1 |   1   1   1
---------------+------+------+----------------+------------
o3/2x . .      |    3 |    3 | 2400    *    * |   1   1   0
.   x3o .      |    3 |    3 |    * 2400    * |   1   0   1
.   x . o5/4*b |    5 |    5 |    *    * 1440 |   0   1   1
---------------+------+------+----------------+------------
o3/2x3o .          6 |   12 |    4    4    0 | 600   *   *
o3/2x . o5/4*b    30 |   60 |   20    0   12 |   * 120   *
.   x3o3o5/4*b    20 |   60 |    0   20   12 |   *   * 120

o3/2x3o3/2o5*b

.   . .   .    | 1200 |   12 |    6    6    6 |   3   3   2
---------------+------+------+----------------+------------
.   x .   .    |    2 | 7200 |    1    1    1 |   1   1   1
---------------+------+------+----------------+------------
o3/2x .   .    |    3 |    3 | 2400    *    * |   1   1   0
.   x3o   .    |    3 |    3 |    * 2400    * |   1   0   1
.   x .   o5*b |    5 |    5 |    *    * 1440 |   0   1   1
---------------+------+------+----------------+------------
o3/2x3o   .        6 |   12 |    4    4    0 | 600   *   *
o3/2x .   o5*b    30 |   60 |   20    0   12 |   * 120   *
.   x3o3/2o5*b    20 |   60 |    0   20   12 |   *   * 120

o3/2x3/2o3o5*b

.   .   . .    | 1200 |   12 |    6    6    6 |   3   3   2
---------------+------+------+----------------+------------
.   x   . .    |    2 | 7200 |    1    1    1 |   1   1   1
---------------+------+------+----------------+------------
o3/2x   . .    |    3 |    3 | 2400    *    * |   1   1   0
.   x3/2o .    |    3 |    3 |    * 2400    * |   1   0   1
.   x   . o5*b |    5 |    5 |    *    * 1440 |   0   1   1
---------------+------+------+----------------+------------
o3/2x3/2o .        6 |   12 |    4    4    0 | 600   *   *
o3/2x   . o5*b    30 |   60 |   20    0   12 |   * 120   *
.   x3/2o3o5*b    20 |   60 |    0   20   12 |   *   * 120

o3/2x3/2o3/2o5/4*b

.   .   .   .      | 1200 |   12 |    6    6    6 |   3   3   2
-------------------+------+------+----------------+------------
.   x   .   .      |    2 | 7200 |    1    1    1 |   1   1   1
-------------------+------+------+----------------+------------
o3/2x   .   .      |    3 |    3 | 2400    *    * |   1   1   0
.   x3/2o   .      |    3 |    3 |    * 2400    * |   1   0   1
.   x   .   o5/4*b |    5 |    5 |    *    * 1440 |   0   1   1
-------------------+------+------+----------------+------------
o3/2x3/2o   .          6 |   12 |    4    4    0 | 600   *   *
o3/2x   .   o5/4*b    30 |   60 |   20    0   12 |   * 120   *
.   x3/2o3/2o5/4*b    20 |   60 |    0   20   12 |   *   * 120
