Acronym | ... |
Name | oxFxoo3xfoxFx3ooxfox&#xt (F=ff=x+f) |
© © | |
Face vector | 72, 228, 210, 54 |
Confer |

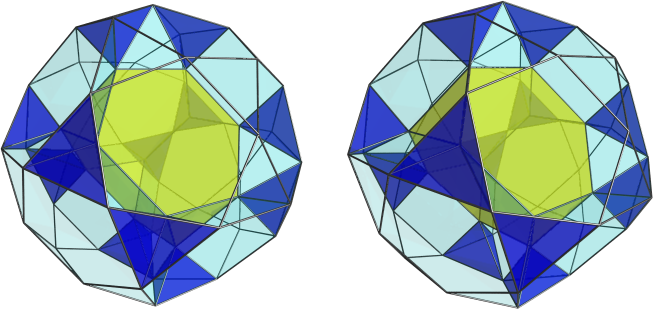

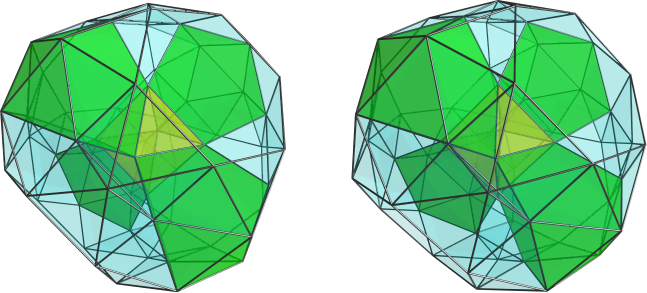

The 3 medial vertex layers F3o3x, x3x3f, and o3F3o, together with connecting edges and faces, form a skew dissectioning surface. (That one is shown in the above pictures at outline of the near resp. far half.) It is interesting, that still there is a completely different continuation beyond known as well, which uses in that half thawro cells too, but then in opposite orientation: oxFxofx3xfoxFxo3ooxfooo&#xt.
Also the nearer half can be replaced, then reversing the orientation of the teddies. Together with the second half from here becoming then: oxFxoo3xooxFx3ofxfox&#xt.
Incidence matrix according to Dynkin symbol
oxFxoo3xfoxFx3ooxfox&#xt → height(1,2) = height(3,4) = height(5,6) = 1/sqrt(8) = 0.353553 (F=ff=x+f) height(2,3) = height(4,5) = sqrt[3-sqrt(5)]/4 = 0.218508 (oct || pseudo (x,f)-tut || pseudo (F,x)-co || pseudo (x,x,f)-toe || pseudo F-oct || tut) o.....3o.....3o..... | 6 * * * * * | 4 2 0 0 0 0 0 0 0 0 0 0 0 0 0 | 2 2 1 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 2 2 0 0 0 0 0 0 .o....3.o....3.o.... | * 12 * * * * | 0 1 1 2 2 1 0 0 0 0 0 0 0 0 0 | 0 0 1 2 1 2 1 2 2 0 0 0 0 0 0 0 0 0 0 0 | 0 2 1 2 1 0 0 0 0 ..o...3..o...3..o... | * * 12 * * * | 0 0 0 2 0 0 2 2 0 0 0 0 0 0 0 | 0 0 0 1 2 0 0 2 0 1 1 2 0 0 0 0 0 0 0 0 | 0 1 1 0 2 1 0 0 0 ...o..3...o..3...o.. | * * * 24 * * | 0 0 0 0 1 0 0 1 1 1 1 1 0 0 0 | 0 0 0 0 0 1 0 1 1 0 1 1 1 1 1 1 1 0 0 0 | 0 1 0 1 1 1 1 1 0 ....o.3....o.3....o. | * * * * 6 * | 0 0 0 0 0 2 0 0 0 0 4 0 2 0 0 | 0 0 0 0 0 0 1 0 4 0 0 2 0 2 0 0 4 1 0 0 | 0 0 0 2 2 2 2 0 0 .....o3.....o3.....o | * * * * * 12 | 0 0 0 0 0 0 0 0 0 0 0 2 1 2 1 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 2 1 1 2 | 0 0 0 0 0 2 1 1 1 -------------------------+-----------------+--------------------------------------------+----------------------------------------------------+--------------------- ...... x..... ...... | 2 0 0 0 0 0 | 12 * * * * * * * * * * * * * * | 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 1 1 0 0 0 0 0 0 oo....3oo....3oo....&#x | 1 1 0 0 0 0 | * 12 * * * * * * * * * * * * * | 0 0 1 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 2 1 0 0 0 0 0 0 .x.... ...... ...... | 0 2 0 0 0 0 | * * 6 * * * * * * * * * * * * | 0 0 1 0 0 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 | 0 2 0 2 0 0 0 0 0 .oo...3.oo...3.oo...&#x | 0 1 1 0 0 0 | * * * 24 * * * * * * * * * * * | 0 0 0 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 | 0 1 1 0 1 0 0 0 0 .o.o..3.o.o..3.o.o..&#x | 0 1 0 1 0 0 | * * * * 24 * * * * * * * * * * | 0 0 0 0 0 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 | 0 1 0 1 1 0 0 0 0 .o..o.3.o..o.3.o..o.&#x | 0 1 0 0 1 0 | * * * * * 12 * * * * * * * * * | 0 0 0 0 0 0 1 0 2 0 0 0 0 0 0 0 0 0 0 0 | 0 0 0 2 1 0 0 0 0 ...... ...... ..x... | 0 0 2 0 0 0 | * * * * * * 12 * * * * * * * * | 0 0 0 0 1 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 | 0 0 1 0 1 1 0 0 0 ..oo..3..oo..3..oo..&#x | 0 0 1 1 0 0 | * * * * * * * 24 * * * * * * * | 0 0 0 0 0 0 0 1 0 0 1 1 0 0 0 0 0 0 0 0 | 0 1 0 0 1 1 0 0 0 ...x.. ...... ...... | 0 0 0 2 0 0 | * * * * * * * * 12 * * * * * * | 0 0 0 0 0 1 0 0 0 0 0 0 1 1 1 0 0 0 0 0 | 0 1 0 1 0 0 1 1 0 ...... ...x.. ...... | 0 0 0 2 0 0 | * * * * * * * * * 12 * * * * * | 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 1 0 0 0 0 | 0 1 0 0 0 1 0 1 0 ...oo.3...oo.3...oo.&#x | 0 0 0 1 1 0 | * * * * * * * * * * 24 * * * * | 0 0 0 0 0 0 0 0 1 0 0 1 0 1 0 0 1 0 0 0 | 0 0 0 1 1 1 1 0 0 ...o.o3...o.o3...o.o&#x | 0 0 0 1 0 1 | * * * * * * * * * * * 24 * * * | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 | 0 0 0 0 0 1 1 1 0 ....oo3....oo3....oo&#x | 0 0 0 0 1 1 | * * * * * * * * * * * * 12 * * | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 1 0 0 | 0 0 0 0 0 2 1 0 0 ...... .....x ...... | 0 0 0 0 0 2 | * * * * * * * * * * * * * 12 * | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 1 | 0 0 0 0 0 1 0 1 1 ...... ...... .....x | 0 0 0 0 0 2 | * * * * * * * * * * * * * * 6 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 2 | 0 0 0 0 0 2 0 0 1 -------------------------+-----------------+--------------------------------------------+----------------------------------------------------+--------------------- o.....3x..... ...... | 3 0 0 0 0 0 | 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 4 * * * * * * * * * * * * * * * * * * * | 1 1 0 0 0 0 0 0 0 ...... x.....3o..... | 3 0 0 0 0 0 | 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | * 4 * * * * * * * * * * * * * * * * * * | 1 0 1 0 0 0 0 0 0 ox.... ...... ......&#x | 1 2 0 0 0 0 | 0 2 1 0 0 0 0 0 0 0 0 0 0 0 0 | * * 6 * * * * * * * * * * * * * * * * * | 0 2 0 0 0 0 0 0 0 ...... xfo... ......&#xt | 2 2 1 0 0 0 | 1 2 0 2 0 0 0 0 0 0 0 0 0 0 0 | * * * 12 * * * * * * * * * * * * * * * * | 0 1 1 0 0 0 0 0 0 ...... ...... .ox...&#x | 0 1 2 0 0 0 | 0 0 0 2 0 0 1 0 0 0 0 0 0 0 0 | * * * * 12 * * * * * * * * * * * * * * * | 0 0 1 0 1 0 0 0 0 .x.x.. ...... ......&#x | 0 2 0 2 0 0 | 0 0 1 0 2 0 0 0 1 0 0 0 0 0 0 | * * * * * 12 * * * * * * * * * * * * * * | 0 1 0 1 0 0 0 0 0 .x..o. ...... ......&#x | 0 2 0 0 1 0 | 0 0 1 0 0 2 0 0 0 0 0 0 0 0 0 | * * * * * * 6 * * * * * * * * * * * * * | 0 0 0 2 0 0 0 0 0 .ooo..3.ooo..3.ooo..&#x | 0 1 1 1 0 0 | 0 0 0 1 1 0 0 1 0 0 0 0 0 0 0 | * * * * * * * 24 * * * * * * * * * * * * | 0 1 0 0 1 0 0 0 0 .o.oo.3.o.oo.3.o.oo.&#x | 0 1 0 1 1 0 | 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 | * * * * * * * * 24 * * * * * * * * * * * | 0 0 0 1 1 0 0 0 0 ...... ..o...3..x... | 0 0 3 0 0 0 | 0 0 0 0 0 0 3 0 0 0 0 0 0 0 0 | * * * * * * * * * 4 * * * * * * * * * * | 0 0 1 0 0 1 0 0 0 ...... ..ox.. ......&#x | 0 0 1 2 0 0 | 0 0 0 0 0 0 0 2 0 1 0 0 0 0 0 | * * * * * * * * * * 12 * * * * * * * * * | 0 1 0 0 0 1 0 0 0 ...... ...... ..xfo.&#xt | 0 0 2 2 1 0 | 0 0 0 0 0 0 1 2 0 0 2 0 0 0 0 | * * * * * * * * * * * 12 * * * * * * * * | 0 0 0 0 1 1 0 0 0 ...x..3...x.. ...... | 0 0 0 6 0 0 | 0 0 0 0 0 0 0 0 3 3 0 0 0 0 0 | * * * * * * * * * * * * 4 * * * * * * * | 0 1 0 0 0 0 0 1 0 ...xo. ...... ......&#x | 0 0 0 2 1 0 | 0 0 0 0 0 0 0 0 1 0 2 0 0 0 0 | * * * * * * * * * * * * * 12 * * * * * * | 0 0 0 1 0 0 1 0 0 ...x.o ...... ......&#x | 0 0 0 2 0 1 | 0 0 0 0 0 0 0 0 1 0 0 2 0 0 0 | * * * * * * * * * * * * * * 12 * * * * * | 0 0 0 0 0 0 1 1 0 ...... ...x.x ......&#x | 0 0 0 2 0 2 | 0 0 0 0 0 0 0 0 0 1 0 2 0 1 0 | * * * * * * * * * * * * * * * 12 * * * * | 0 0 0 0 0 1 0 1 0 ...ooo3...ooo3...ooo&#x | 0 0 0 1 1 1 | 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 | * * * * * * * * * * * * * * * * 24 * * * | 0 0 0 0 0 1 1 0 0 ...... ...... ....ox&#x | 0 0 0 0 1 2 | 0 0 0 0 0 0 0 0 0 0 0 0 2 0 1 | * * * * * * * * * * * * * * * * * 6 * * | 0 0 0 0 0 2 0 0 0 .....o3.....x ...... | 0 0 0 0 0 3 | 0 0 0 0 0 0 0 0 0 0 0 0 0 3 0 | * * * * * * * * * * * * * * * * * * 4 * | 0 0 0 0 0 0 0 1 1 ...... .....x3.....x | 0 0 0 0 0 6 | 0 0 0 0 0 0 0 0 0 0 0 0 0 3 3 | * * * * * * * * * * * * * * * * * * * 4 | 0 0 0 0 0 1 0 0 1 -------------------------+-----------------+--------------------------------------------+----------------------------------------------------+--------------------- o.....3x.....3o..... ♦ 6 0 0 0 0 0 | 12 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 4 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 * * * * * * * * oxFx..3xfox.. ......&#xt ♦ 3 6 3 6 0 0 | 3 6 3 6 6 0 0 6 3 3 0 0 0 0 0 | 1 0 3 3 0 3 0 6 0 0 3 0 1 0 0 0 0 0 0 0 | * 4 * * * * * * * ...... xfo...3oox...&#xt ♦ 3 3 3 0 0 0 | 3 3 0 6 0 0 3 0 0 0 0 0 0 0 0 | 0 1 0 3 3 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 | * * 4 * * * * * * .x.xo. ...... ......&#x ♦ 0 2 0 2 1 0 | 0 0 1 0 2 2 0 0 1 0 2 0 0 0 0 | 0 0 0 0 0 1 1 0 2 0 0 0 0 1 0 0 0 0 0 0 | * * * 12 * * * * * ...... ...... .oxfo.&#xr ♦ 0 1 2 2 1 0 | 0 0 0 2 2 1 1 2 0 0 2 0 0 0 0 | 0 0 0 0 1 0 0 2 2 0 0 1 0 0 0 0 0 0 0 0 | * * * * 12 * * * * ...... ..oxFx3..xfox&#xt ♦ 0 0 3 6 3 6 | 0 0 0 0 0 0 3 6 0 3 6 6 6 3 3 | 0 0 0 0 0 0 0 0 0 1 3 3 0 0 0 3 6 3 0 1 | * * * * * 4 * * * ...xoo ...... ......&#x ♦ 0 0 0 2 1 1 | 0 0 0 0 0 0 0 0 1 0 2 2 1 0 0 | 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 2 0 0 0 | * * * * * * 12 * * ...x.o3...x.x ......&#x ♦ 0 0 0 6 0 3 | 0 0 0 0 0 0 0 0 3 3 0 6 0 3 0 | 0 0 0 0 0 0 0 0 0 0 0 0 1 0 3 3 0 0 1 0 | * * * * * * * 4 * .....o3.....x3.....x ♦ 0 0 0 0 0 12 | 0 0 0 0 0 0 0 0 0 0 0 0 0 12 6 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 4 | * * * * * * * * 1
