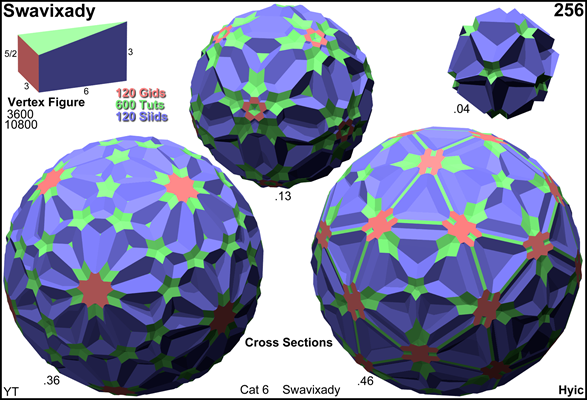

Acronym swavixady
Name small sphenoverted hexacosadishecatonicosachoron

 ©
displaying the gids only
Circumradius sqrt[(15+3 sqrt(5))/2] = 3.294556
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gid sidditdid siid tid tut
swavixady 12001200600
srawv ditathi 12012001200
& others)
Face vector 3600, 10800, 7440, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope swavixady is isomorphic to grawvixady, thereby replacing pentagrams by pentagons, respectively gid by id and siid by giid.


Incidence matrix according to Dynkin symbol

o3x3x3o5/2*b

. . . .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
-------------+------+-----------+---------------------+------------
. x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. . x .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
-------------+------+-----------+---------------------+------------
o3x . .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
. x3x .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
. x . o5/2*b |    5 |    5    0 |    *    * 1440    * |   0   1   1
. . x3o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-------------+------+-----------+---------------------+------------
o3x3x .         12 |   12    6 |    4    4    0    0 | 600   *   *
o3x . o5/2*b    30 |   60    0 |   20    0   12    0 |   * 120   *
. x3x3o5/2*b    60 |   60   60 |    0   20   12   20 |   *   * 120

o3x3x3/2o5/3*b

. . .   .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
. x .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. . x   .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o3x .   .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
. x3x   .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
. x .   o5/3*b |    5 |    5    0 |    *    * 1440    * |   0   1   1
. . x3/2o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o3x3x   .         12 |   12    6 |    4    4    0    0 | 600   *   *
o3x .   o5/3*b    30 |   60    0 |   20    0   12    0 |   * 120   *
. x3x3/2o5/3*b    60 |   60   60 |    0   20   12   20 |   *   * 120

o3/2x3x3o5/2*b

.   . . .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o3/2x . .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x . o5/2*b |    5 |    5    0 |    *    * 1440    * |   0   1   1
.   . x3o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o3/2x3x .         12 |   12    6 |    4    4    0    0 | 600   *   *
o3/2x . o5/2*b    30 |   60    0 |   20    0   12    0 |   * 120   *
.   x3x3o5/2*b    60 |   60   60 |    0   20   12   20 |   *   * 120

o3/2x3x3/2o5/3*b

.   . .   .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
-----------------+------+-----------+---------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
-----------------+------+-----------+---------------------+------------
o3/2x .   .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x .   o5/3*b |    5 |    5    0 |    *    * 1440    * |   0   1   1
.   . x3/2o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-----------------+------+-----------+---------------------+------------
o3/2x3x   .         12 |   12    6 |    4    4    0    0 | 600   *   *
o3/2x .   o5/3*b    30 |   60    0 |   20    0   12    0 |   * 120   *
.   x3x3/2o5/3*b    60 |   60   60 |    0   20   12   20 |   *   * 120
