Acronym sirfix

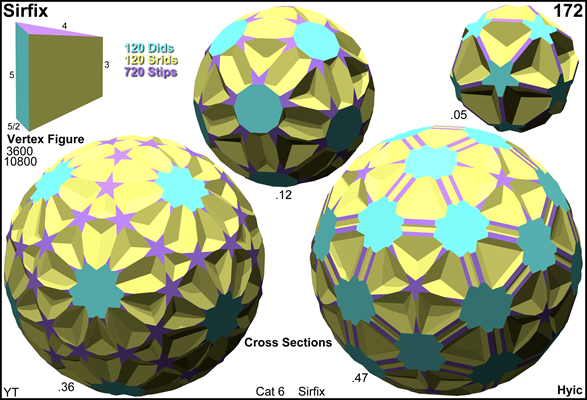

Name small rhombated faceted hexacosachoron
Circumradius sqrt[10+4 sqrt(5)] = 4.352502
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: did saddid srid stip tigid
srawvathi 12012000120
sirfix 12001207200
& others)
Face vector 3600, 10800, 7680, 960
Confer
related segmentochora:
did || tigid
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope sirfix is isomorphic to qrigfix, thereby interchanging pentagrams and pentagons, resp. replacing srid by qrid and stip by pip.


Incidence matrix according to Dynkin symbol

x3o5x5/2o

. . .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
----------+------+-----------+---------------------+------------
x . .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
. . x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
----------+------+-----------+---------------------+------------
x3o .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x . x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
. o5x   . |    5 |    0    5 |    *    * 1440    * |   1   0   1
. . x5/2o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
----------+------+-----------+---------------------+------------
x3o5x   .    60 |   60   60 |   20   30   12    0 | 120   *   *
x . x5/2o    10 |    5   10 |    0    5    0    2 |   * 720   *
. o5x5/2o    30 |    0   60 |    0    0   12   12 |   *   * 120

x3o5x5/3o

. . .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
----------+------+-----------+---------------------+------------
x . .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
. . x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
----------+------+-----------+---------------------+------------
x3o .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x . x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
. o5x   . |    5 |    0    5 |    *    * 1440    * |   1   0   1
. . x5/3o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
----------+------+-----------+---------------------+------------
x3o5x   .    60 |   60   60 |   20   30   12    0 | 120   *   *
x . x5/3o    10 |    5   10 |    0    5    0    2 |   * 720   *
. o5x5/3o    30 |    0   60 |    0    0   12   12 |   *   * 120

x3/2o5/4x5/2o

.   .   .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
--------------+------+-----------+---------------------+------------
x   .   .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
.   .   x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
--------------+------+-----------+---------------------+------------
x3/2o   .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x   .   x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
.   o5/4x   . |    5 |    0    5 |    *    * 1440    * |   1   0   1
.   .   x5/2o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
--------------+------+-----------+---------------------+------------
x3/2o5/4x   .    60 |   60   60 |   20   30   12    0 | 120   *   *
x   .   x5/2o    10 |    5   10 |    0    5    0    2 |   * 720   *
.   o5/4x5/2o    30 |    0   60 |    0    0   12   12 |   *   * 120

x3/2o5/4x5/3o

.   .   .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
--------------+------+-----------+---------------------+------------
x   .   .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
.   .   x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
--------------+------+-----------+---------------------+------------
x3/2o   .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x   .   x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
.   o5/4x   . |    5 |    0    5 |    *    * 1440    * |   1   0   1
.   .   x5/3o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
--------------+------+-----------+---------------------+------------
x3/2o5/4x   .    60 |   60   60 |   20   30   12    0 | 120   *   *
x   .   x5/3o    10 |    5   10 |    0    5    0    2 |   * 720   *
.   o5/4x5/3o    30 |    0   60 |    0    0   12   12 |   *   * 120
