Acronym srawvathi

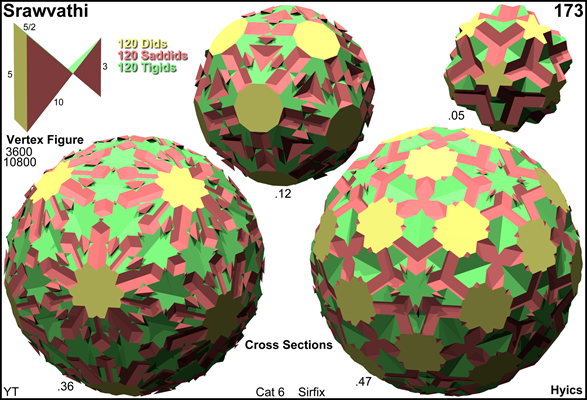

Name small retrosphenoverted triakishecatonicosachoron
Circumradius sqrt[10+4 sqrt(5)] = 4.352502
Colonel of regiment sirfix
Face vector 3600, 10800, 5520, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope srawvathi is isomorphic to gwavathi, thereby interchanging the roles of pentagons and pentagrams, and replacing decagons by decagrams, respectively tigid by quit sissid and saddid by gaddid. – As such srawvathi is a lieutenant.


Incidence matrix according to Dynkin symbol

o5/2x5o3/2x5*b

.   . .   .    | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . .   x    |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o5/2x .   .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5o   .    |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x .   x5*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   . o3/2x    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/2x5o   .       30 |   60    0 |   12   12    0    0 | 120   *   *
o5/2x .   x5*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5o3/2x5*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5/2x5/4o3x5*b

.   .   . .    | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
.   x   . .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   .   . x    |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o5/2x   . .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5/4o .    |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x   . x5*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   .   o3x    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/2x5/4o .       30 |   60    0 |   12   12    0    0 | 120   *   *
o5/2x   . x5*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5/4o3x5*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5/3x5o3/2x5*b

.   . .   .    | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . .   x    |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o5/3x .   .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5o   .    |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x .   x5*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   . o3/2x    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/3x5o   .       30 |   60    0 |   12   12    0    0 | 120   *   *
o5/3x .   x5*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5o3/2x5*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5/3x5/4o3x5*b

.   .   . .    | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
.   x   . .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   .   . x    |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o5/3x   . .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5/4o .    |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x   . x5*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   .   o3x    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/3x5/4o .       30 |   60    0 |   12   12    0    0 | 120   *   *
o5/3x   . x5*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5/4o3x5*b    60 |   60   60 |    0   12   12   20 |   *   * 120
