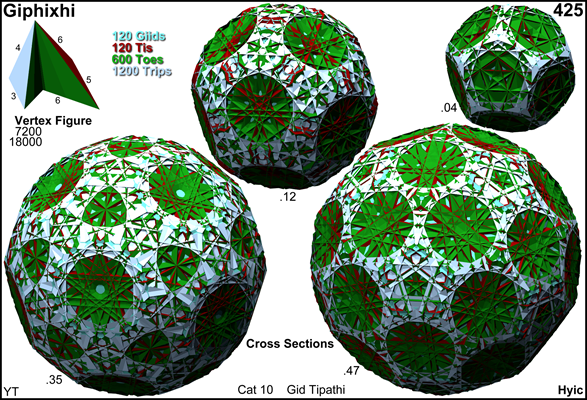

Acronym giphixhi
Name great prismatohecatonicosihexacosihecatonicosachoron
Circumradius sqrt[13-2 sqrt(5)] = 2.920251
Colonel of regiment gid tipathi
Face vector 7200, 18000, 12240, 2040
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polychoron giphixhi is isomorph to sphixhi. Thereby replacing pentagrams by pentagons, resp. ti by tiggy and giid by siid. – As such giphixhi is a lieutenant.


Incidence matrix according to Dynkin symbol

x3x3x3o5/4*b

. . . .      | 7200 |    1    2    2 |    2    2    2    1    1 |   2   1    1   1
-------------+------+----------------+--------------------------+-----------------
x . . .      |    2 | 3600    *    * |    2    2    0    0    0 |   2   1    1   0
. x . .      |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. . x .      |    2 |    *    * 7200 |    0    1    1    0    1 |   1   0    1   1
-------------+------+----------------+--------------------------+-----------------
x3x . .      |    6 |    3    3    0 | 2400    *    *    *    * |   1   1    0   0
x . x .      |    4 |    2    0    2 |    * 3600    *    *    * |   1   0    1   0
. x3x .      |    6 |    0    3    3 |    *    * 2400    *    * |   1   0    0   1
. x . o5/4*b |    5 |    0    5    0 |    *    *    * 1440    * |   0   1    0   1
. . x3o      |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
-------------+------+----------------+--------------------------+-----------------
x3x3x .         24 |   12   12   12 |    4    6    4    0    0 | 600   *    *   *
x3x . o5/4*b    60 |   30   60    0 |   20    0    0   12    0 |   * 120    *   *
x . x3o          6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x3x3o5/4*b    60 |    0   60   60 |    0    0   20   12   20 |   *   *    * 120

x3x3x3/2o5*b

. . .   .    | 7200 |    1    2    2 |    2    2    2    1    1 |   2   1    1   1
-------------+------+----------------+--------------------------+-----------------
x . .   .    |    2 | 3600    *    * |    2    2    0    0    0 |   2   1    1   0
. x .   .    |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. . x   .    |    2 |    *    * 7200 |    0    1    1    0    1 |   1   0    1   1
-------------+------+----------------+--------------------------+-----------------
x3x .   .    |    6 |    3    3    0 | 2400    *    *    *    * |   1   1    0   0
x . x   .    |    4 |    2    0    2 |    * 3600    *    *    * |   1   0    1   0
. x3x   .    |    6 |    0    3    3 |    *    * 2400    *    * |   1   0    0   1
. x .   o5*b |    5 |    0    5    0 |    *    *    * 1440    * |   0   1    0   1
. . x3/2o    |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
-------------+------+----------------+--------------------------+-----------------
x3x3x   .       24 |   12   12   12 |    4    6    4    0    0 | 600   *    *   *
x3x .   o5*b    60 |   30   60    0 |   20    0    0   12    0 |   * 120    *   *
x . x3/2o        6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x3x3/2o5*b    60 |    0   60   60 |    0    0   20   12   20 |   *   *    * 120
