Acronym gwavathi

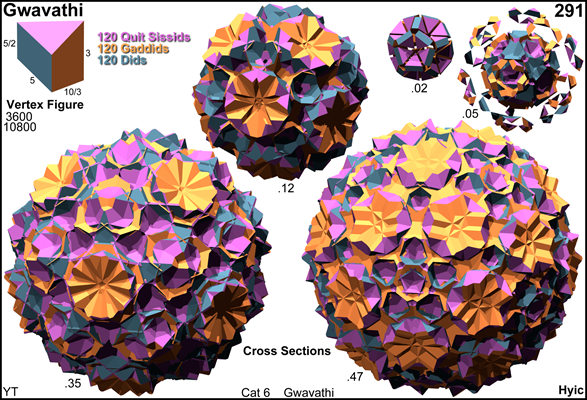

Name great sphenoverted triakishecatonicosachoron
Circumradius sqrt[10-4 sqrt(5)] = 1.027486
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: did gaddid quit sissid
gwavathi 120120120
& others)
Face vector 3600, 10800, 5520, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope gwavathi is isomorphic to srawvathi, thereby interchanging the roles of pentagons and pentagrams, and replacing decagrams by decagons, respectively quit sissid by tigid and gaddid by saddid.


Incidence matrix according to Dynkin symbol

o5x5/2o3x5/3*b

. .   . .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
. x   . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. .   . x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o5x   . .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
. x5/2o .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
. x   . x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
. .   o3x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5x5/2o .         30 |   60    0 |   12   12    0    0 | 120   *   *
o5x   . x5/3*b    60 |   60   30 |   12    0   12    0 |   * 120   *
. x5/2o3x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5x5/3o3/2x5/3*b

. .   .   .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-----------------+------+-----------+---------------------+------------
. x   .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. .   .   x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-----------------+------+-----------+---------------------+------------
o5x   .   .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
. x5/3o   .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
. x   .   x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
. .   o3/2x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-----------------+------+-----------+---------------------+------------
o5x5/3o   .         30 |   60    0 |   12   12    0    0 | 120   *   *
o5x   .   x5/3*b    60 |   60   30 |   12    0   12    0 |   * 120   *
. x5/3o3/2x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5/4x5/2o3x5/3*b

.   .   . .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-----------------+------+-----------+---------------------+------------
.   x   . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   .   . x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-----------------+------+-----------+---------------------+------------
o5/4x   . .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5/2o .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x   . x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   .   o3x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-----------------+------+-----------+---------------------+------------
o5/4x5/2o .         30 |   60    0 |   12   12    0    0 | 120   *   *
o5/4x   . x5/3*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5/2o3x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o5/4x5/3o3/2x5/3*b

.   .   .   .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-------------------+------+-----------+---------------------+------------
.   x   .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   .   .   x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-------------------+------+-----------+---------------------+------------
o5/4x   .   .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x5/3o   .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x   .   x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   .   o3/2x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-------------------+------+-----------+---------------------+------------
o5/4x5/3o   .         30 |   60    0 |   12   12    0    0 | 120   *   *
o5/4x   .   x5/3*b    60 |   60   30 |   12    0   12    0 |   * 120   *
.   x5/3o3/2x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120
