Acronym quippirghi

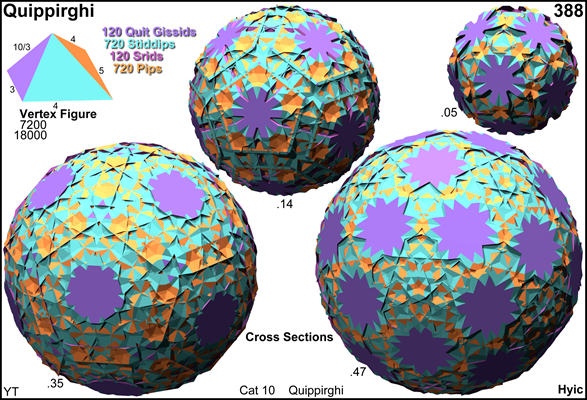

Name quasiprismatorhombated grand hecatonicosachoron
Circumradius sqrt[8-sqrt(5)] = 2.400819
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: pip quitdid quit gissid saddid srid stiddip
gapthi 72012012012000
quippirghi 72001200120720
& others)
Face vector 7200, 18000, 12480, 1680
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope quippirghi is isomorphic to paqrigshi, thereby replacing the decagrams by decagons and the pentagons by pentagrams, resp. replacing the srid by qrid, the quit gissid by tid, the stiddip by dip, and the pip by stip.


Incidence matrix according to Dynkin symbol

x5/3x3o5x

.   . . . | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2   1   1
----------+------+----------------+--------------------------+----------------
x   . . . |    2 | 3600    *    * |    2    2    0    0    0 |   1   2   1   0
.   x . . |    2 |    * 7200    * |    1    0    1    1    0 |   1   1   0   1
.   . . x |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1   1   1
----------+------+----------------+--------------------------+----------------
x5/3x . . |   10 |    5    5    0 | 1440    *    *    *    * |   1   1   0   0
x   . . x |    4 |    2    0    2 |    * 3600    *    *    * |   0   1   1   0
.   x3o . |    3 |    0    3    0 |    *    * 2400    *    * |   1   0   0   1
.   x . x |    4 |    0    2    2 |    *    *    * 3600    * |   0   1   0   1
.   . o5x |    5 |    0    0    5 |    *    *    *    * 1440 |   0   0   1   1
----------+------+----------------+--------------------------+----------------
x5/3x3o .    60 |   30   60    0 |   12    0   20    0    0 | 120   *   *   *
x5/3x . x    20 |   10   10   10 |    2    5    0    5    0 |   * 720   *   *
x   . o5x    10 |    5    0   10 |    0    5    0    0    2 |   *   * 720   *
.   x3o5x    60 |    0   60   60 |    0    0   20   30   12 |   *   *   * 120

x5/3x3/2o5/4x

.   .   .   . | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2   1   1
--------------+------+----------------+--------------------------+----------------
x   .   .   . |    2 | 3600    *    * |    2    2    0    0    0 |   1   2   1   0
.   x   .   . |    2 |    * 7200    * |    1    0    1    1    0 |   1   1   0   1
.   .   .   x |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1   1   1
--------------+------+----------------+--------------------------+----------------
x5/3x   .   . |   10 |    5    5    0 | 1440    *    *    *    * |   1   1   0   0
x   .   .   x |    4 |    2    0    2 |    * 3600    *    *    * |   0   1   1   0
.   x3/2o   . |    3 |    0    3    0 |    *    * 2400    *    * |   1   0   0   1
.   x   .   x |    4 |    0    2    2 |    *    *    * 3600    * |   0   1   0   1
.   .   o5/4x |    5 |    0    0    5 |    *    *    *    * 1440 |   0   0   1   1
--------------+------+----------------+--------------------------+----------------
x5/3x3/2o   .    60 |   30   60    0 |   12    0   20    0    0 | 120   *   *   *
x5/3x   .   x    20 |   10   10   10 |    2    5    0    5    0 |   * 720   *   *
x   .   o5/4x    10 |    5    0   10 |    0    5    0    0    2 |   *   * 720   *
.   x3/2o5/4x    60 |    0   60   60 |    0    0   20   30   12 |   *   *   * 120
