Acronym pedisna
Name pental disnubbachoron,
compound of 12 ex in rox army,
compound of 2 kepisna
Coxeter symbol 2{3;3,5}[12{3,3,5}]
Circumradius (1+sqrt(5))/2 = 1.618034

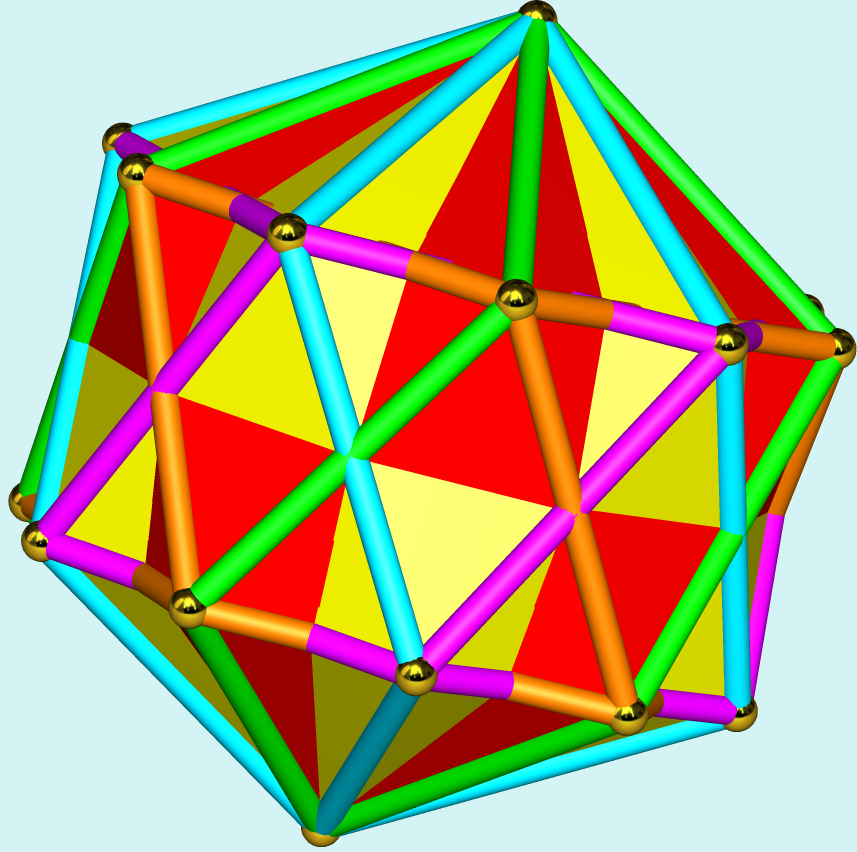

Vertex figure
 ©
General of army rox
Embedding
                                            o5o
                                    x5o             x5o
                                            o5f
                        o5x                                     o5x
                o5o             x5x                     x5x             o5o

                    f5o                     x5f                     f5o
            o5x                     F5o             F5o                     o5x
                                o5F                     o5F
                        f5x                                     f5x

            x5x                     f5f             f5f                     x5x
    x5o             o5F                     V5o                     o5F             x5o

                F5o             o5V                     o5V             F5o
o5o                     f5f                                     f5f                     o5o
    o5f                                     x5F                                     o5f
            x5f                     F5x             F5x                     x5f

x5o                     V5o                                     V5o                     x5o
                                x5F                     x5F
            F5o                                                             F5o
    x5x             f5f                    oA5Ao                    f5f             x5x
            o5F                                                             o5F
                                F5x                     F5x
o5x                     o5V                                     o5V                     o5x

            f5x                     x5F             x5F                     f5x
    f5o                                     F5x                                     f5o
o5o                     f5f                                     f5f                     o5o
                o5F             V5o                     V5o             o5F

    o5x             F5o                     o5V                     F5o             o5x
            x5x                     f5f             f5f                     x5x

                        x5f                                     x5f
                                F5o                     F5o
            x5o                     o5F             o5F                     x5o
                    o5f                     f5x                     o5f

                o5o             x5x                     x5x             o5o
                        x5o                                     x5o
                                            f5o
                                    o5x             o5x
                                            o5o
hull = rox
(F=ff=f+x, V=2f, A=F+x)
                                            o5o



                o5o             x5x                     x5x             o5o






            x5x                     f5f             f5f                     x5x



o5o                     f5f                                     f5f                     o5o






    x5x             f5f                    oA5Ao                    f5f             x5x






o5o                     f5f                                     f5f                     o5o



            x5x                     f5f             f5f                     x5x






                o5o             x5x                     x5x             o5o



                                            o5o
vertex-inscribed non-uniform 2 ex compound, infact
6 such components then build this uniform compound.
scaling factor = x(10,2) = sqrt[(5+sqrt(5))/2] = 1.902113
(vertex figure highlighted)
                 o5o           o5o
                        o5x

            x5o                     x5o
     o5o                                   o5o
                        f5o
                 o5f           o5f

     o5x                                   o5x
            f5o                     f5o

o5o                     x5x                     o5o

            o5f                     o5f
     x5o                                   x5o

                 f5o           f5o
                        o5f
     o5o                                   o5o
            o5x                     o5x

                        x5o
                 o5o           o5o
single ex component
(display just slanted by 360°/20=18°)
Confer
blend-component:
ex
compounds:
kepisna

This compound occurs in 6 different forms depending on whether the vertices (coincident by 2) will be counted separately (type A), or will be identified while the incident edges will still be counted separately (type C), or whether both would be identified (type E). All these would use 12 hexacosachora for compound components. – Each of those cases could be considered on base of the 6 hexacosachora compound (kepisna) instead, i.e. using just 2 such components. That then gives rise to (type B) with no identifications, (type D) with identification of vertices only, and (type F) with identifications of coincident vertices and concident edges.

From the 3rd and 4th line of the matrices (type E) or (type F) one moreover reads off that each rosette of 5 tets around those normal edges uses orange-green-orange-green-orange in cyclical order as incident faces. One double edge then would emanate from the top vertex of the axial edge along the green incident face, while the other double edge would emanate from the bottom vertex along the other green incident face. A third double edge then would be located at the outer rim of that rosette between the tips of the 2 neighboring incident orange faces. – This then tells furthermore that on either side of the top double edge a green face each is on the upper side of the rosette, that on either side of the bottom double edge there is a green face each on the lower side of the rosette, and that on either side of the double edge at the rim also will be a green face each, one on the upper, one on the lower side of that rosette. All remaining upper and lower faces of that rosette then will be orange (2 each). – The same holds for the cyan and magenta faces, building similar rosettes around each normal edge, but showing up the opposite handedness instead.


Incidence matrix

(Type A) - no identifications

1440    12 |    30 |   20 ||  1  verf: ike
-----+------+-------+------++---
   2 | 8640 |     5 |    5 ||  1
-----+------+-------+------++---
   3 |    3 | 14400 |    2 ||  1
-----+------+-------+------++---
   4 |    6 |     4 | 7200 ||  1  tet
-----+------+-------+------++---
 120 |  720 |  1200 |  600 || 12  ex

(Type B) - no identifications, but as 2 kepisna comp.

1440    12 |    30 |   20 || 1  verf: ike
-----+------+-------+------++--
   2 | 8640 |     5 |    5 || 1
-----+------+-------+------++--
   3 |    3 | 14400 |    2 || 1
-----+------+-------+------++--
   4 |    6 |     4 | 7200 || 1  tet
-----+------+-------+------++--
 720 | 4320 |  7200 | 3600 || 2  kepisna

(Type C) - identifying incident vertices only

720    24 |    60 |   40 ||  2  verf: twirled vertex-first 2-ike comp., with no identifications
----+------+-------+------++---
  2 | 8640 |     5 |    5 ||  1
----+------+-------+------++---
  3 |    3 | 14400 |    2 ||  1
----+------+-------+------++---
  4 |    6 |     4 | 7200 ||  1  tet
----+------+-------+------++---
120 |  720 |  1200 |  600 || 12  ex

(Type D) - identifying incident vertices only, but as 2 kepisna comp.

720    24 |    60 |   40 || 2  verf: twirled vertex-first 2-ike comp., with no identifications
----+------+-------+------++--
  2 | 8640 |     5 |    5 || 1
----+------+-------+------++--
  3 |    3 | 14400 |    2 || 1
----+------+-------+------++--
  4 |    6 |     4 | 7200 || 1  tet
----+------+-------+------++--
720 | 4320 |  7200 | 3600 || 2  kepisna

(Type E) - identifying vertices and coincident edges

720    2   10   10 |   15   15   15   15 |   20   20 || 1 1  verf: twirled vertex-first 2-ike comp., with identifications
----+---------------+---------------------+-----------++----
  2 | 720    *    * |    5    5    0    0 |    5    5 || 1 1  edge-fig: decagonal 2-{5} comp., acc. to coinc. vert. of verf
  2 |   * 3600    * |    2    0    3    0 |    5    0 || 1 0  acc. to unique vertices of red ike of verf
  2 |   *    * 3600 |    0    2    0    3 |    0    5 || 0 1  acc. to unique vertices of yellow ike of verf
----+---------------+---------------------+-----------++----
  3 |   1    2    0 | 3600    *    *    * |    2    0 || 1 0  green, acc. to green edges of verf
  3 |   1    0    2 |    * 3600    *    * |    0    2 || 0 1  cyan, acc. to cyan edges of verf
  3 |   0    3    0 |    *    * 3600    * |    2    0 || 1 0  orange, acc. to orange edges of verf
  3 |   0    0    3 |    *    *    * 3600 |    0    2 || 0 1  magenta, acc. to magenta edges of verf
----+---------------+---------------------+-----------++----
  4 |   1    5    0 |    2    0    2    0 | 3600    * || 1 0  green-green-orange-orange, tet (as 2-ap), of red ex
  4 |   1    0    5 |    0    2    0    2 |    * 3600 || 0 1  cyan-cyan-magenta-magenta, tet (as 2-ap), of yellow ex
----+---------------+---------------------+-----------++----
120 | 120  600    0 |  600    0  600    0 |  600    0 || 6 *  red ex
120 | 120    0  600 |    0  600    0  600 |    0  600 || * 6  yellow ex

(Type F) - identifying vertices and coincident edges, but as 2 kepisna comp.

720    2   10   10 |   15   15   15   15 |   20   20 || 1 1  verf: twirled vertex-first 2-ike comp., with identifications
----+---------------+---------------------+-----------++----
  2 | 720    *    * |    5    5    0    0 |    5    5 || 1 1  edge-fig: decagonal 2-{5} comp., acc. to coinc. vert. of verf
  2 |   * 3600    * |    2    0    3    0 |    5    0 || 1 0  acc. to unique vertices of red ike of verf
  2 |   *    * 3600 |    0    2    0    3 |    0    5 || 0 1  acc. to unique vertices of yellow ike of verf
----+---------------+---------------------+-----------++----
  3 |   1    2    0 | 3600    *    *    * |    2    0 || 1 0  green, acc. to green edges of verf
  3 |   1    0    2 |    * 3600    *    * |    0    2 || 0 1  cyan, acc. to cyan edges of verf
  3 |   0    3    0 |    *    * 3600    * |    2    0 || 1 0  orange, acc. to orange edges of verf
  3 |   0    0    3 |    *    *    * 3600 |    0    2 || 0 1  magenta, acc. to magenta edges of verf
----+---------------+---------------------+-----------++----
  4 |   1    5    0 |    2    0    2    0 | 3600    * || 1 0  green-green-orange-orange, tet (as 2-ap), of red kepisna
  4 |   1    0    5 |    0    2    0    2 |    * 3600 || 0 1  cyan-cyan-magenta-magenta, tet (as 2-ap), of yellow kepisna
----+---------------+---------------------+-----------++----
720 | 720 3600    0 | 3600    0 3600    0 | 3600    0 || 1 *  red kepisna
720 | 720    0 3600 |    0 3600    0 3600 |    0 3600 || * 1  yellow kepisna
