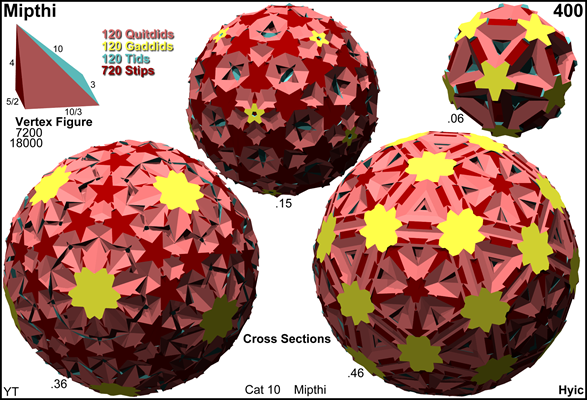

Acronym mipthi
Name medial prismatotriakishecatonicosachoron
Circumradius sqrt[8+sqrt(5)] = 3.199386
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gaddid quitdid stip tid
mipthi 120120720120
& others)
Face vector 7200, 18000, 10320, 1080
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope mipthi is isomorphic to gapthi, thereby replacing pentagrams by pentagons and interchanging decagrams and decagons, respectively replacing tid by quit gissid, stip by pip, and gaddid by saddid.

Likewise it is isomorphic to sid thipady, thereby interchanging decagrams and decagons only, respectively replacing tid by quit gissid, gaddid by sidditdid.

Further it is isomorphic to gid thipady, thereby replacing pentagons by pentagrams, respectively stip by pip and gaddid by gidditdid.


Incidence matrix according to Dynkin symbol

x5x3o5/2x5/3*b

. . .   .      | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2   1   1
---------------+------+----------------+--------------------------+----------------
x . .   .      |    2 | 3600    *    * |    2    2    0    0    0 |   1   2   1   0
. x .   .      |    2 |    * 7200    * |    1    0    1    1    0 |   1   1   0   1
. . .   x      |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1   1   1
---------------+------+----------------+--------------------------+----------------
x5x .   .      |   10 |    5    5    0 | 1440    *    *    *    * |   1   1   0   0
x . .   x      |    4 |    2    0    2 |    * 3600    *    *    * |   0   1   1   0
. x3o   .      |    3 |    0    3    0 |    *    * 2400    *    * |   1   0   0   1
. x .   x5/3*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1   0   1
. . o5/2x      |    5 |    0    0    5 |    *    *    *    * 1440 |   0   0   1   1
---------------+------+----------------+--------------------------+----------------
x5x3o   .         60 |   30   60    0 |   12    0   20    0    0 | 120   *   *   *
x5x .   x5/3*b   120 |   60   60   60 |   12   30    0   12    0 |   * 120   *   *
x . o5/2x         10 |    5    0   10 |    0    5    0    0    2 |   *   * 720   *
. x3o5/2x5/3*b    60 |    0   60   60 |    0    0   20   12   12 |   *   *   * 120

x5x3/2o5/3x5/3*b

. .   .   .      | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2   1   1
-----------------+------+----------------+--------------------------+----------------
x .   .   .      |    2 | 3600    *    * |    2    2    0    0    0 |   1   2   1   0
. x   .   .      |    2 |    * 7200    * |    1    0    1    1    0 |   1   1   0   1
. .   .   x      |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1   1   1
-----------------+------+----------------+--------------------------+----------------
x5x   .   .      |   10 |    5    5    0 | 1440    *    *    *    * |   1   1   0   0
x .   .   x      |    4 |    2    0    2 |    * 3600    *    *    * |   0   1   1   0
. x3/2o   .      |    3 |    0    3    0 |    *    * 2400    *    * |   1   0   0   1
. x   .   x5/3*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1   0   1
. .   o5/3x      |    5 |    0    0    5 |    *    *    *    * 1440 |   0   0   1   1
-----------------+------+----------------+--------------------------+----------------
x5x3/2o   .         60 |   30   60    0 |   12    0   20    0    0 | 120   *   *   *
x5x   .   x5/3*b   120 |   60   60   60 |   12   30    0   12    0 |   * 120   *   *
x .   o5/3x         10 |    5    0   10 |    0    5    0    0    2 |   *   * 720   *
. x3/2o5/3x5/3*b    60 |    0   60   60 |    0    0   20   12   12 |   *   *   * 120
