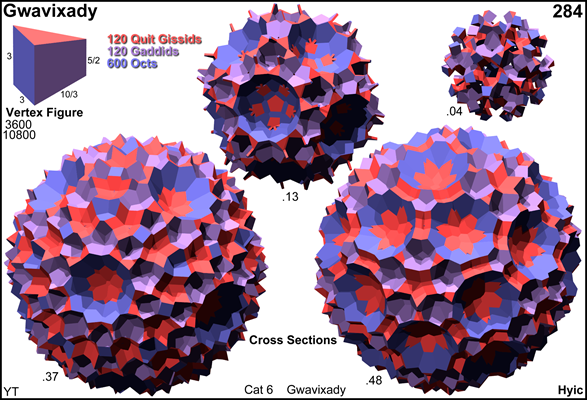

Acronym gwavixady
Name great sphenoverted hexacosadishecatonicosachoron
Circumradius sqrt[23-10 sqrt(5)] = 0.799575
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gaddid oct quit gissid stiddip trip
gwavixady 12060012000
gipriphi 001207201200
& others)
Face vector 3600, 10800, 6960, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope gwavixady is isomorphic to srawvixady, thereby replacing pentagrams by pentagons and decagrams by decagons, respectively quit gissid by tid and gaddid by saddid.


Incidence matrix according to Dynkin symbol

o3x3o5/2x5/3*b

. . .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
---------------+------+-----------+--------------------+------------
. x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
---------------+------+-----------+--------------------+------------
o3x .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. . o5/2x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3x3o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3x .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3o5/2x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3x3/2o5/3x5/3*b

. .   .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-----------------+------+-----------+--------------------+------------
. x   .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. .   .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-----------------+------+-----------+--------------------+------------
o3x   .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3/2o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
. x   .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
. .   o5/3x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o3x3/2o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3x   .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
. x3/2o5/3x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3o5/2x5/3*b

.   . .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-----------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-----------------+------+-----------+--------------------+------------
o3/2x .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   . o5/2x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o3/2x3o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3o5/2x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o3/2x3/2o5/3x5/3*b

.   .   .   .      | 3600 |    4    2 |    2    2    4   1 |   1   2   2
-------------------+------+-----------+--------------------+------------
.   x   .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   .   .   x      |    2 |    * 3600 |    0    0    2   1 |   0   1   2
-------------------+------+-----------+--------------------+------------
o3/2x   .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3/2o   .      |    3 |    3    0 |    * 2400    *   * |   1   0   1
.   x   .   x5/3*b |   10 |    5    5 |    *    * 1440   * |   0   1   1
.   .   o5/3x      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------------+------+-----------+--------------------+------------
o3/2x3/2o   .          6 |   12    0 |    4    4    0   0 | 600   *   *
o3/2x   .   x5/3*b    60 |   60   30 |   20    0   12   0 |   * 120   *
.   x3/2o5/3x5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120
