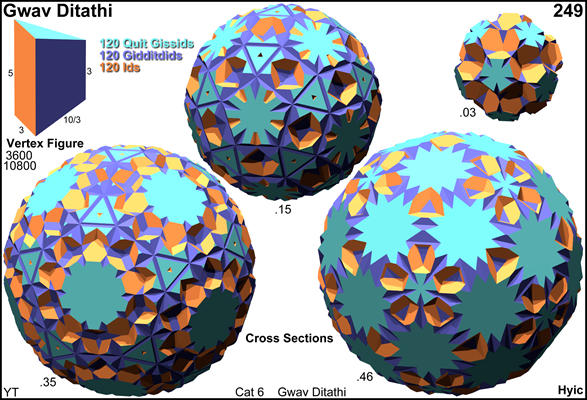

Acronym gwav ditathi
Name great sphenoverted ditrigonary triakishecatonicosachoron
Circumradius sqrt[(15-3 sqrt(5))/2] = 2.036148
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gidditdid giid id quit gissid tut
gwav ditathi 12001201200
grawvixady 01201200600
& others)
Face vector 3600, 10800, 6480, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope gwav ditathi is isomorphic to srawv ditathi, thereby replacing pentagons by pentagrams, and decagrams by decagons, respectively id by gid, quit gissid by tid, and gidditdid by sidditdid.


Incidence matrix according to Dynkin symbol

o3x5o3x5/3*b

. . . .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-------------+------+-----------+---------------------+------------
. x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. . . x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-------------+------+-----------+---------------------+------------
o3x . .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
. x5o .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
. x . x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
. . o3x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-------------+------+-----------+---------------------+------------
o3x5o .         30 |   60    0 |   20   12    0    0 | 120   *   *
o3x . x5/3*b    60 |   60   30 |   20    0   12    0 |   * 120   *
. x5o3x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o3x5/4o3/2x5/3*b

. .   .   .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-----------------+------+-----------+---------------------+------------
. x   .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
. .   .   x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-----------------+------+-----------+---------------------+------------
o3x   .   .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
. x5/4o   .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
. x   .   x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
. .   o3/2x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-----------------+------+-----------+---------------------+------------
o3x5/4o   .         30 |   60    0 |   20   12    0    0 | 120   *   *
o3x   .   x5/3*b    60 |   60   30 |   20    0   12    0 |   * 120   *
. x5/4o3/2x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o3/2x5o3x5/3*b

.   . . .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
---------------+------+-----------+---------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . . x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
---------------+------+-----------+---------------------+------------
o3/2x . .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
.   x5o .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x . x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   . o3x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o3/2x5o .         30 |   60    0 |   20   12    0    0 | 120   *   *
o3/2x . x5/3*b    60 |   60   30 |   20    0   12    0 |   * 120   *
.   x5o3x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120

o3/2x5/4o3/2x5/3*b

.   .   .   .      | 3600 |    4    2 |    2    2    4    1 |   1   2   2
-------------------+------+-----------+---------------------+------------
.   x   .   .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   .   .   x      |    2 |    * 3600 |    0    0    2    1 |   0   1   2
-------------------+------+-----------+---------------------+------------
o3/2x   .   .      |    3 |    3    0 | 2400    *    *    * |   1   1   0
.   x5/4o   .      |    5 |    5    0 |    * 1440    *    * |   1   0   1
.   x   .   x5/3*b |   10 |    5    5 |    *    * 1440    * |   0   1   1
.   .   o3/2x      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
-------------------+------+-----------+---------------------+------------
o3/2x5/4o   .         30 |   60    0 |   20   12    0    0 | 120   *   *
o3/2x   .   x5/3*b    60 |   60   30 |   20    0   12    0 |   * 120   *
.   x5/4o3/2x5/3*b    60 |   60   60 |    0   12   12   20 |   *   * 120
