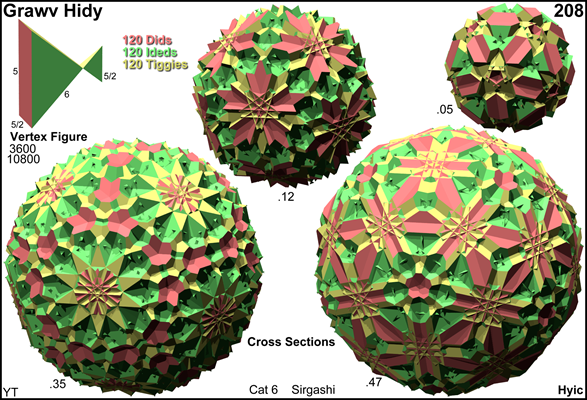

Acronym grawv hidy
Name great retrosphenoverted hecatonicosadishecatonicosachoron
Circumradius sqrt[7-2 sqrt(5)] = 1.589926
General of army srahi
Colonel of regiment sirgashi
Face vector 3600, 10800, 6000, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope grawv hidy is isomorphic to srawv hidy, thereby interchanging pentagons and pentagrams, respectively replacing tiggy by ti.


Incidence matrix according to Dynkin symbol

o5/2x3x5/3o5*b

.   . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/2x .   .    |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/3o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/2x3x   .       60 |   60   30 |   12   20    0   0 | 120   *   *
o5/2x .   o5*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5/3o5*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5/2x3x5/2o5/4*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/2x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5/4*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/2o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/2x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/2x .   o5/4*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5/2o5/4*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5/3x3x5/3o5*b

.   . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/3x .   .    |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/3o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/3x3x   .       60 |   60   30 |   12   20    0   0 | 120   *   *
o5/3x .   o5*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5/3o5*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5/3x3x5/2o5/4*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/3x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5/4*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/2o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/3x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/3x .   o5/4*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5/2o5/4*b    60 |   60   60 |    0   20   12  12 |   *   * 120
