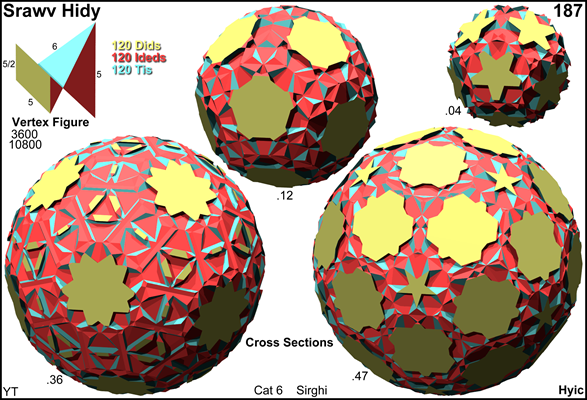

Acronym srawv hidy
Name small retrosphenoverted hecatonicosadishecatonicosachoron
Circumradius sqrt[7+2 sqrt(5)] = 3.387054
Colonel of regiment sirghi
Face vector 3600, 10800, 6000, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope srawv hidy is isomorphic to grawv hidy, thereby interchanging pentagons and pentagrams, respectively replacing ti by tiggy.


Incidence matrix according to Dynkin symbol

o5x3x5o5/3*b

. . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-------------+------+-----------+--------------------+------------
. x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-------------+------+-----------+--------------------+------------
o5x . .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
. x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x . o5/3*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
. . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o5x3x .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5x . o5/3*b    30 |   60    0 |   12    0   12   0 |   * 120   *
. x3x5o5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5x3x5/4o5/2*b

. . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
. x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
. x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x .   o5/2*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
. . x5/4o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5x .   o5/2*b    30 |   60    0 |   12    0   12   0 |   * 120   *
. x3x5/4o5/2*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5/4x3x5o5/3*b

.   . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/4x . .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x . o5/3*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/4x3x .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/4x . o5/3*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5o5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

o5/4x3x5/4o5/2*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-----------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-----------------+------+-----------+--------------------+------------
o5/4x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5/2*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/4o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o5/4x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/4x .   o5/2*b    30 |   60    0 |   12    0   12   0 |   * 120   *
.   x3x5/4o5/2*b    60 |   60   60 |    0   20   12  12 |   *   * 120
