Acronym swavathi

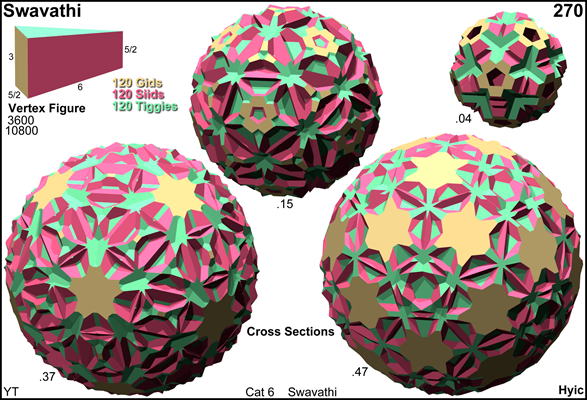

Name small sphenoverted triakishecatonicosachoron
Circumradius sqrt[(11-sqrt(5))/2] = 2.093315
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: gid sidditdid siid tiggy tigid
grawv ditathi 12012000120
swavathi 12001201200
& others)
Face vector 3600, 10800, 6960, 360
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope swavathi is isomorphic to grawvathi, thereby replacing pentagrams by pentagons, respectively tiggy by ti, gid by id, and siid by giid.


Incidence matrix according to Dynkin symbol

o5/2x3x5/2o3*b

.   . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/2x .   .    |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o3*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5/2o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/2x3x   .       60 |   60   30 |   12   20    0   0 | 120   *   *
o5/2x .   o3*b    30 |   60    0 |   12    0   20   0 |   * 120   *
.   x3x5/2o3*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o5/2x3x5/3o3/2*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-----------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-----------------+------+-----------+--------------------+------------
o5/2x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o3/2*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5/3o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o5/2x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/2x .   o3/2*b    30 |   60    0 |   12    0   20   0 |   * 120   *
.   x3x5/3o3/2*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o5/3x3x5/2o3*b

.   . .   .    | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o5/3x .   .    |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o3*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5/2o    |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o5/3x3x   .       60 |   60   30 |   12   20    0   0 | 120   *   *
o5/3x .   o3*b    30 |   60    0 |   12    0   20   0 |   * 120   *
.   x3x5/2o3*b    60 |   60   60 |    0   20   20  12 |   *   * 120

o5/3x3x5/3o3/2*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-----------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-----------------+------+-----------+--------------------+------------
o5/3x .   .      |    5 |    5    0 | 1440    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o3/2*b |    3 |    3    0 |    *    * 2400   * |   0   1   1
.   . x5/3o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o5/3x3x   .         60 |   60   30 |   12   20    0   0 | 120   *   *
o5/3x .   o3/2*b    30 |   60    0 |   12    0   20   0 |   * 120   *
.   x3x5/3o3/2*b    60 |   60   60 |    0   20   20  12 |   *   * 120
