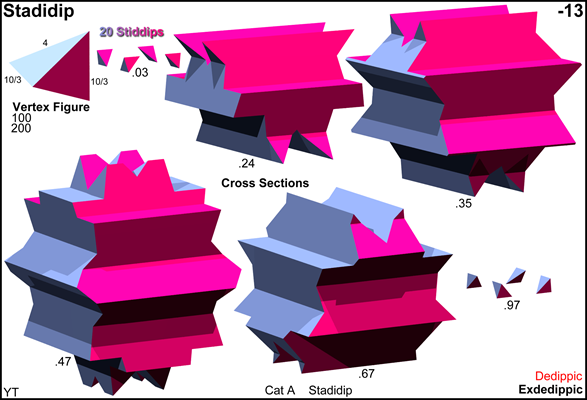

Acronym stadidip
Name decagram-decagram duoprism
Circumradius sqrt[3-sqrt(5)] = 0.874032
Dihedral angles
Face vector 100, 200, 120, 20
Confer
general duoprisms:
n/d,m/b-dip
compounds:
gadtap
general polytopal classes:
noble polytopes
External
links
hedrondude polytopewiki

Incidence matrix according to Dynkin symbol

x10/3o x10/3o

.    . .    . | 100 |   2   2 |  1   4  1 |  2  2
--------------+-----+---------+-----------+------
x    . .    . |   2 | 100   * |  1   2  0 |  2  1
.    . x    . |   2 |   * 100 |  0   2  1 |  1  2
--------------+-----+---------+-----------+------
x10/3o .    . |  10 |  10   0 | 10   *  * |  2  0
x    . x    . |   4 |   2   2 |  * 100  * |  1  1
.    . x10/3o |  10 |   0  10 |  *   * 10 |  0  2
--------------+-----+---------+-----------+------
x10/3o x    .   20 |  20  10 |  2  10  0 | 10  *
x    . x10/3o   20 |  10  20 |  0  10  2 |  * 10
or
.    . .    .    | 100 |   4 |  2   4 |  4
-----------------+-----+-----+--------+---
x    . .    .  & |   2 | 200 |  1   2 |  3
-----------------+-----+-----+--------+---
x10/3o .    .  & |  10 |  10 | 20   * |  2
x    . x    .    |   4 |   4 |  * 100 |  2
-----------------+-----+-----+--------+---
x10/3o x    .  &   20 |  30 |  2  10 | 20

x10/3o x10/7o

.    . .    . | 100 |   2   2 |  1   4  1 |  2  2
--------------+-----+---------+-----------+------
x    . .    . |   2 | 100   * |  1   2  0 |  2  1
.    . x    . |   2 |   * 100 |  0   2  1 |  1  2
--------------+-----+---------+-----------+------
x10/3o .    . |  10 |  10   0 | 10   *  * |  2  0
x    . x    . |   4 |   2   2 |  * 100  * |  1  1
.    . x10/7o |  10 |   0  10 |  *   * 10 |  0  2
--------------+-----+---------+-----------+------
x10/3o x    .   20 |  20  10 |  2  10  0 | 10  *
x    . x10/7o   20 |  10  20 |  0  10  2 |  * 10

x10/7o x10/7o

.    . .    . | 100 |   2   2 |  1   4  1 |  2  2
--------------+-----+---------+-----------+------
x    . .    . |   2 | 100   * |  1   2  0 |  2  1
.    . x    . |   2 |   * 100 |  0   2  1 |  1  2
--------------+-----+---------+-----------+------
x10/7o .    . |  10 |  10   0 | 10   *  * |  2  0
x    . x    . |   4 |   2   2 |  * 100  * |  1  1
.    . x10/7o |  10 |   0  10 |  *   * 10 |  0  2
--------------+-----+---------+-----------+------
x10/7o x    .   20 |  20  10 |  2  10  0 | 10  *
x    . x10/7o   20 |  10  20 |  0  10  2 |  * 10
or
.    . .    .    | 100 |   4 |  2   4 |  4
-----------------+-----+-----+--------+---
x    . .    .  & |   2 | 200 |  1   2 |  3
-----------------+-----+-----+--------+---
x10/7o .    .  & |  10 |  10 | 20   * |  2
x    . x    .    |   4 |   4 |  * 100 |  2
-----------------+-----+-----+--------+---
x10/7o x    .  &   20 |  30 |  2  10 | 20

x5/3x x10/3o

.   . .    . | 100 |  1  1   2 |  1  2  2  1 |  2 1 1
-------------+-----+-----------+-------------+-------
x   . .    . |   2 | 50  *   * |  1  2  0  0 |  2 1 0
.   x .    . |   2 |  * 50   * |  1  0  2  0 |  2 0 1
.   . x    . |   2 |  *  * 100 |  0  1  1  1 |  1 1 1
-------------+-----+-----------+-------------+-------
x5/3x .    . |  10 |  5  5   0 | 10  *  *  * |  2 0 0
x   . x    . |   4 |  2  0   2 |  * 50  *  * |  1 1 0
.   x x    . |   4 |  0  2   2 |  *  * 50  * |  1 0 1
.   . x10/3o |  10 |  0  0  10 |  *  *  * 10 |  0 1 1
-------------+-----+-----------+-------------+-------
x5/3x x    .   20 | 10 10  10 |  2  5  5  0 | 10 * *
x   . x10/3o   20 | 10  0  20 |  0 10  0  2 |  * 5 *
.   x x10/3o   20 |  0 10  20 |  0  0 10  2 |  * * 5

x5/3x x10/7o

.   . .    . | 100 |  1  1   2 |  1  2  2  1 |  2 1 1
-------------+-----+-----------+-------------+-------
x   . .    . |   2 | 50  *   * |  1  2  0  0 |  2 1 0
.   x .    . |   2 |  * 50   * |  1  0  2  0 |  2 0 1
.   . x    . |   2 |  *  * 100 |  0  1  1  1 |  1 1 1
-------------+-----+-----------+-------------+-------
x5/3x .    . |  10 |  5  5   0 | 10  *  *  * |  2 0 0
x   . x    . |   4 |  2  0   2 |  * 50  *  * |  1 1 0
.   x x    . |   4 |  0  2   2 |  *  * 50  * |  1 0 1
.   . x10/7o |  10 |  0  0  10 |  *  *  * 10 |  0 1 1
-------------+-----+-----------+-------------+-------
x5/3x x    .   20 | 10 10  10 |  2  5  5  0 | 10 * *
x   . x10/7o   20 | 10  0  20 |  0 10  0  2 |  * 5 *
.   x x10/7o   20 |  0 10  20 |  0  0 10  2 |  * * 5

x5/3x x5/3x

.   . .   . | 100 |  1  1  1  1 |  1  1  1  1  1  1 | 1 1 1 1
------------+-----+-------------+-------------------+--------
x   . .   . |   2 | 50  *  *  * |  1  1  1  0  0  0 | 1 1 1 0
.   x .   . |   2 |  * 50  *  * |  1  0  0  1  1  0 | 1 1 0 1
.   . x   . |   2 |  *  * 50  * |  0  1  0  1  0  1 | 1 0 1 1
.   . .   x |   2 |  *  *  * 50 |  0  0  1  0  1  1 | 0 1 1 1
------------+-----+-------------+-------------------+--------
x5/3x .   . |  10 |  5  5  0  0 | 10  *  *  *  *  * | 1 1 0 0
x   . x   . |   4 |  2  0  2  0 |  * 25  *  *  *  * | 1 0 1 0
x   . .   x |   4 |  2  0  0  2 |  *  * 25  *  *  * | 0 1 1 0
.   x x   . |   4 |  0  2  2  0 |  *  *  * 25  *  * | 1 0 0 1
.   x .   x |   4 |  0  2  0  2 |  *  *  *  * 25  * | 0 1 0 1
.   . x5/3x |  10 |  0  0  5  5 |  *  *  *  *  * 10 | 0 0 1 1
------------+-----+-------------+-------------------+--------
x5/3x x   .   20 | 10 10 10  0 |  2  5  0  5  0  0 | 5 * * *
x5/3x .   x   20 | 10 10  0 10 |  2  0  5  0  5  0 | * 5 * *
x   . x5/3x   20 | 10  0 10 10 |  0  5  5  0  0  2 | * * 5 *
.   x x5/3x   20 |  0 10 10 10 |  0  0  0  5  5  2 | * * * 5
