Acronym srohp
Name small-rhombihexahedron prism

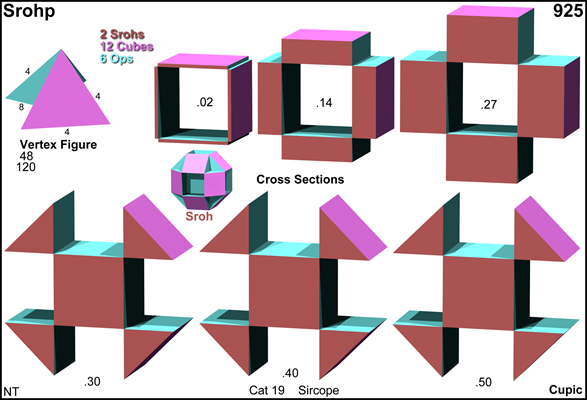

Cross sections
 ©
Circumradius sqrt[(3+sqrt(2))/2] = 1.485633
Coordinates (1+sqrt(2), 1, 1, 1)/2   & all permutations in all but last coord., all changes of sign
General of army sircope
Colonel of regiment sircope
Face vector 48, 120, 84, 20
External
links
hedrondude   polytopewiki

As abstract polytope srohp is isomorphic to grohp, thereby replacing octagons by octagrams, respectively sroh by groh and op by stop.


Incidence matrix

48 |  2  2  1 |  2  2  2  2 |  2 2 1
---+----------+-------------+-------
 2 | 48  *  * |  1  1  0  1 |  1 1 1
 2 |  * 48  * |  1  0  1  1 |  1 1 1
 2 |  *  * 24 |  0  2  2  0 |  2 2 0
---+----------+-------------+-------
 4 |  2  2  0 | 24  *  *  * |  1 0 1
 4 |  2  0  2 |  * 24  *  * |  1 1 0  (at pseudo trip)
 4 |  0  2  2 |  *  * 24  * |  1 1 0  (at pseudo cube)
 8 |  4  4  0 |  *  *  * 12 |  0 1 1  {8}
---+----------+-------------+-------
 8 |  4  4  4 |  2  2  2  0 | 12 * *  cube
16 |  8  8  8 |  0  4  4  2 |  * 6 *  op
24 | 24 24  0 | 12  0  0  6 |  * * 2  sroh
or (only as abstract polychoron)
48 |  4  1 |  2  4  2 |  2 2 1
---+-------+----------+-------
 2 | 96  * |  1  1  1 |  1 1 1
 2 |  * 24 |  0  4  0 |  2 2 0
---+-------+----------+-------
 4 |  4  0 | 24  *  * |  1 0 1
 4 |  2  2 |  * 48  * |  1 1 0
 8 |  8  0 |  *  * 12 |  0 1 1  {8}
---+-------+----------+-------
 8 |  8  4 |  2  4  0 | 12 * *  cube
16 | 16  8 |  0  8  2 |  * 6 *  op
24 | 48  0 | 12  0  6 |  * * 2  sroh
