Acronym sid tipathi

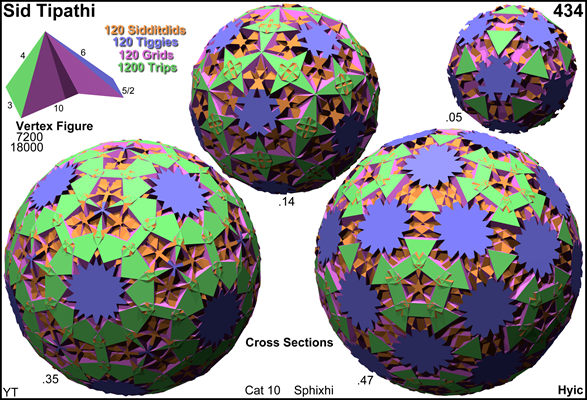

Name small ditrigonary prismatotriakishecatonicosachoron
Circumradius sqrt[13+2 sqrt(5)] = 4.179968
Colonel of regiment sphixhi
Face vector 7200, 18000, 11280, 1560
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope sid tipathi is isomorphic to gid tipathi, thereby replacing pentagrams by pentagons and decagons by decagrams, respectively grid by gaquatid, tiggy by ti, and sidditdid by gidditdid. – As such sid tipathi is a lieutenant.


Incidence matrix according to Dynkin symbol

x3x5/3o3x5*b

. .   . .    | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
-------------+------+----------------+--------------------------+-----------------
x .   . .    |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
. x   . .    |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. .   . x    |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
-------------+------+----------------+--------------------------+-----------------
x3x   . .    |    6 |    3    3    0 | 2400    *    *    *    * |   1   1    0   0
x .   . x    |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
. x5/3o .    |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
. x   . x5*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1    0   1
. .   o3x    |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
-------------+------+----------------+--------------------------+-----------------
x3x5/3o .       60 |   30   60    0 |   20    0   12    0    0 | 120   *    *   *
x3x   . x5*b   120 |   60   60   60 |   20   30    0   12    0 |   * 120    *   *
x .   o3x        6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x5/3o3x5*b    60 |    0   60   60 |    0    0   12   12   20 |   *   *    * 120

x3x5/2o3/2x5*b

. .   .   .    | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
---------------+------+----------------+--------------------------+-----------------
x .   .   .    |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
. x   .   .    |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. .   .   x    |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
---------------+------+----------------+--------------------------+-----------------
x3x   .   .    |    6 |    3    3    0 | 2400    *    *    *    * |   1   1    0   0
x .   .   x    |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
. x5/2o   .    |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
. x   .   x5*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1    0   1
. .   o3/2x    |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
---------------+------+----------------+--------------------------+-----------------
x3x5/2o   .       60 |   30   60    0 |   20    0   12    0    0 | 120   *    *   *
x3x   .   x5*b   120 |   60   60   60 |   20   30    0   12    0 |   * 120    *   *
x .   o3/2x        6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x5/2o3/2x5*b    60 |    0   60   60 |    0    0   12   12   20 |   *   *    * 120
