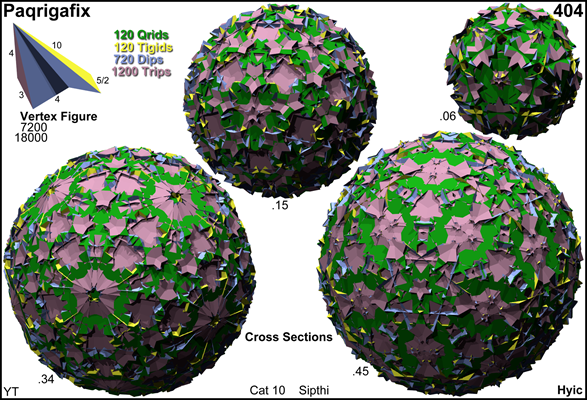

Acronym paqrigafix (old: paquerfix)
Name prismatoquasirhombated great facetted hexacosachoron
Circumradius sqrt[8-2 sqrt(5)] = 1.878261
Colonel of regiment sipthi
Face vector 7200, 18000, 12480, 2160
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope paqrigafix is isomorphic to quippirfix, thereby replacing the decagons by decagrams and the pentagrams by pentagons, resp. replacing the qrid by srid, the tigid by quit sissid, and the dip by stiddip.


Incidence matrix according to Dynkin symbol

x5x5/3o3x

. .   . . | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
----------+------+----------------+--------------------------+-----------------
x .   . . |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
. x   . . |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. .   . x |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
----------+------+----------------+--------------------------+-----------------
x5x   . . |   10 |    5    5    0 | 1440    *    *    *    * |   1   1    0   0
x .   . x |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
. x5/3o . |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
. x   . x |    4 |    0    2    2 |    *    *    * 3600    * |   0   1    0   1
. .   o3x |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
----------+------+----------------+--------------------------+-----------------
x5x5/3o .    60 |   30   60    0 |   12    0   12    0    0 | 120   *    *   *
x5x   . x    20 |   10   10   10 |    2    5    0    5    0 |   * 720    *   *
x .   o3x     6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x5/3o3x    60 |    0   60   60 |    0    0   12   30   20 |   *   *    * 120

x5x5/2o3/2x

. .   .   . | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
------------+------+----------------+--------------------------+-----------------
x .   .   . |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
. x   .   . |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
. .   .   x |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
------------+------+----------------+--------------------------+-----------------
x5x   .   . |   10 |    5    5    0 | 1440    *    *    *    * |   1   1    0   0
x .   .   x |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
. x5/2o   . |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
. x   .   x |    4 |    0    2    2 |    *    *    * 3600    * |   0   1    0   1
. .   o3/2x |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
------------+------+----------------+--------------------------+-----------------
x5x5/2o   .    60 |   30   60    0 |   12    0   12    0    0 | 120   *    *   *
x5x   .   x    20 |   10   10   10 |    2    5    0    5    0 |   * 720    *   *
x .   o3/2x     6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
. x5/2o3/2x    60 |    0   60   60 |    0    0   12   30   20 |   *   *    * 120
