Acronym inpac
Name icositetraintercepted prismatotetracontaoctachoron

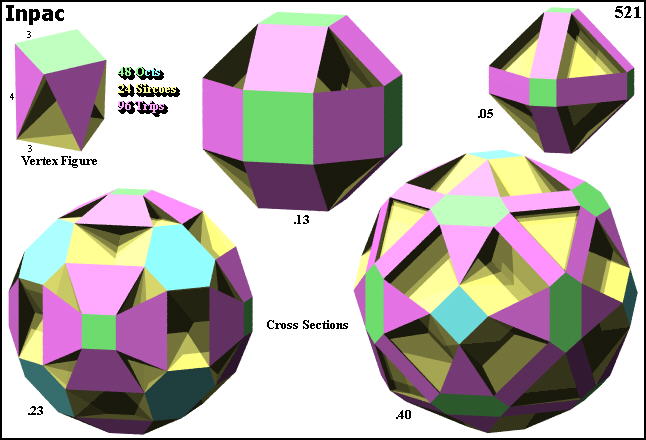

Cross sections
 ©
Circumradius sqrt[2+sqrt(2)] = 1.847759
General of army spic
Colonel of regiment spic
Face vector 144, 576, 744, 168
Confer inpac+72{4}
External
links
hedrondude   polytopewiki   WikiChoron

The icositetraintercepted prismatotetracontaoctachoron is an edge-faceting of the small prismatotetracontoctachoron (spic).


Incidence matrix

 144 |   4   4 |   4   4   8  2 |  1  1  4  4
-----+---------+----------------+------------
   2 | 288   * |   2   0   2  0 |  1  0  1  2
   2 |   * 288 |   0   2   2  1 |  0  1  2  2
-----+---------+----------------+------------
   3 |   3   0 | 192   *   *  * |  1  0  0  1
   3 |   0   3 |   * 192   *  * |  0  1  1  0
   4 |   2   2 |   *   * 288  * |  0  0  1  1
   4 |   0   4 |   *   *   * 72 |  0  0  0  2
-----+---------+----------------+------------
  6 |  12   0 |   8   0   0  0 | 24  *  *  *
  6 |   0  12 |   0   8   0  0 |  * 24  *  *
  6 |   3   6 |   0   2   3  0 |  *  * 96  *
 24 |  24  24 |   8   0  12  6 |  *  *  * 24
