Acronym hatha
Name hexaapeirogonaltruncated hexaapeirogonal tiling

 ©

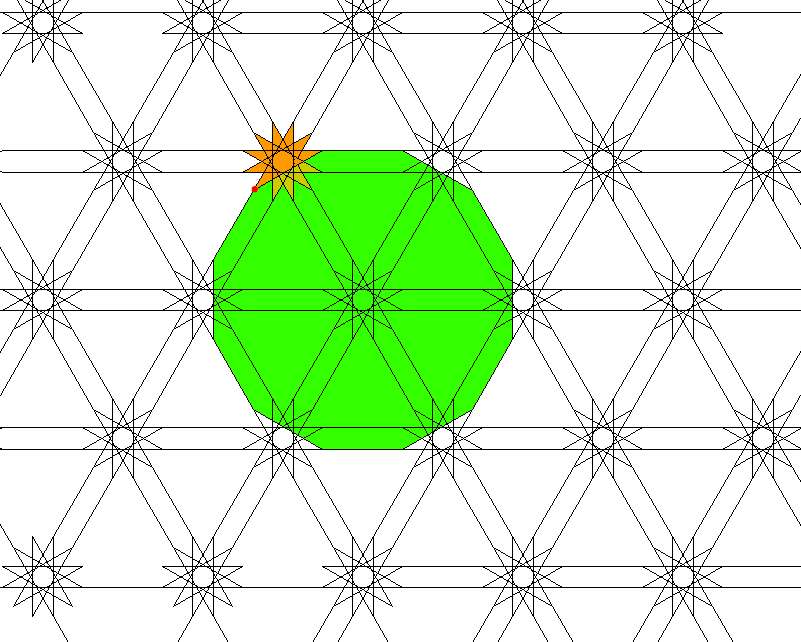

Vertex figure [12,12/5,∞]
External
links
pokemonkey   polytopewiki   mcneill

Incidence matrix according to Dynkin symbol

x6x6/5x∞*a   (N,M → ∞)

. .   .    | 12NM |   1   1   1 |  1  1  1
-----------+------+-------------+---------
x .   .    |    2 | 6NM   *   * |  1  1  0
. x   .    |    2 |   * 6NM   * |  1  0  1
. .   x    |    2 |   *   * 6NM |  0  1  1
-----------+------+-------------+---------
x6x   .    |   12 |   6   6   0 | NM  *  *
x .   x∞*a    2M |   M   0   M |  * 6N  *
. x6/5x    |   12 |   0   6   6 |  *  * NM
