Acronym grawv hixhi
Name great retrosphenoverted hecatonicosihexacosihecatonicosachoron

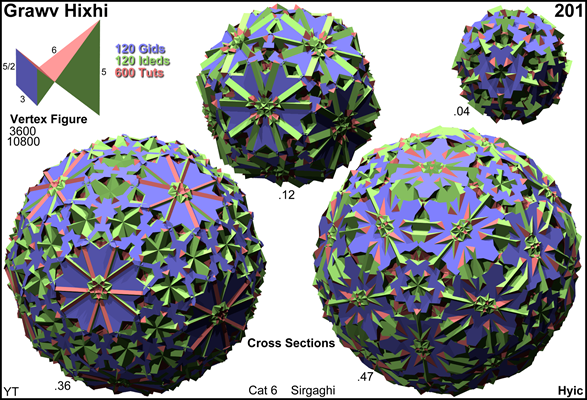

Cross sections
 ©
Circumradius sqrt[9-3 sqrt(5)] = 1.513868
Colonel of regiment sirgaghi
Face vector 3600, 10800, 6960, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope grawv hixhi is isomorphic to mrawv hixhi, thereby interchanging the roles of pentagons and pentagrams, respectively replacing gid by id.


Incidence matrix according to Dynkin symbol

     o
   3 |
     x
  3 / \ 5/3
   x---o
     5
o3x3x5o5/3*b

. . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-------------+------+-----------+--------------------+------------
. x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-------------+------+-----------+--------------------+------------
o3x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x . o5/3*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
. . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-------------+------+-----------+--------------------+------------
o3x3x .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3x . o5/3*b    30 |   60    0 |   20    0   12   0 |   * 120   *
. x3x5o5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

     o
   3 |
     x
  3 / \ 5/2
   x---o
    5/4
o3x3x5/4o5/2*b

. . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
. x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
. . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o3x .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
. x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
. x .   o5/2*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
. . x5/4o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3x3x   .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3x .   o5/2*b    30 |   60    0 |   20    0   12   0 |   * 120   *
. x3x5/4o5/2*b    60 |   60   60 |    0   20   12  12 |   *   * 120

     o
 3/2 |
     x
  3 / \ 5/3
   x---o
     5
o3/2x3x5o5/3*b

.   . . .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
---------------+------+-----------+--------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
---------------+------+-----------+--------------------+------------
o3/2x . .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x . o5/3*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
---------------+------+-----------+--------------------+------------
o3/2x3x .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3/2x . o5/3*b    30 |   60    0 |   20    0   12   0 |   * 120   *
.   x3x5o5/3*b    60 |   60   60 |    0   20   12  12 |   *   * 120

     o
 3/2 |
     x
  3 / \ 5/2
   x---o
    5/4
o3/2x3x5/4o5/2*b

.   . .   .      | 3600 |    4    2 |    2    4    2   1 |   2   1   2
-----------------+------+-----------+--------------------+------------
.   x .   .      |    2 | 7200    * |    1    1    1   0 |   1   1   1
.   . x   .      |    2 |    * 3600 |    0    2    0   1 |   1   0   2
-----------------+------+-----------+--------------------+------------
o3/2x .   .      |    3 |    3    0 | 2400    *    *   * |   1   1   0
.   x3x   .      |    6 |    3    3 |    * 2400    *   * |   1   0   1
.   x .   o5/2*b |    5 |    5    0 |    *    * 1440   * |   0   1   1
.   . x5/4o      |    5 |    0    5 |    *    *    * 720 |   0   0   2
-----------------+------+-----------+--------------------+------------
o3/2x3x   .         12 |   12    6 |    4    4    0   0 | 600   *   *
o3/2x .   o5/2*b    30 |   60    0 |   20    0   12   0 |   * 120   *
.   x3x5/4o5/2*b    60 |   60   60 |    0   20   12  12 |   *   * 120
