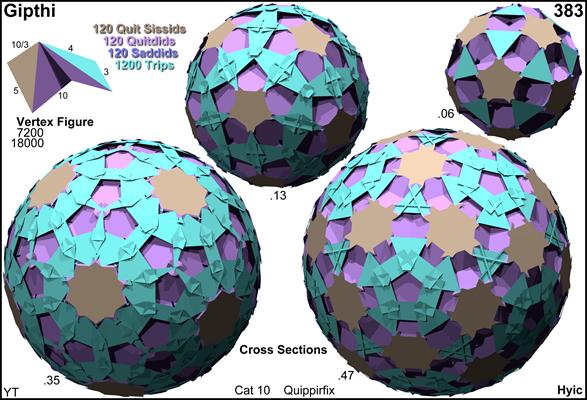

Acronym gipthi
Name great prismatotriakishecatonicosachoron
Circumradius sqrt[8+2 sqrt(5)] = 3.531591
Colonel of regiment quippirfix
Face vector 7200, 18000, 10320, 1560
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope gipthi is isomorphic to sipthi, thereby interchanging the roles of decagons and decagrams and replacing the pentagons by pentagrams, respectively replacing quit sissid by tigid and saddid by gaddid. – As such gipthi is a lieutenant.


Incidence matrix according to Dynkin symbol

x5/3x5o3/2x5*b

.   . .   .    | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
---------------+------+----------------+--------------------------+-----------------
x   . .   .    |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
.   x .   .    |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
.   . .   x    |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
---------------+------+----------------+--------------------------+-----------------
x5/3x .   .    |   10 |    5    5    0 | 1440    *    *    *    * |   1   1    0   0
x   . .   x    |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
.   x5o   .    |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
.   x .   x5*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1    0   1
.   . o3/2x    |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
---------------+------+----------------+--------------------------+-----------------
x5/3x5o   .       60 |   30   60    0 |   12    0   12    0    0 | 120   *    *   *
x5/3x .   x5*b   120 |   60   60   60 |   12   30    0   12    0 |   * 120    *   *
x   . o3/2x        6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
.   x5o3/2x5*b    60 |    0   60   60 |    0    0   12   12   20 |   *   *    * 120

x5/3x5/4o3x5*b

.   .   . .    | 7200 |    1    2    2 |    2    2    1    2    1 |   1   2    1   1
---------------+------+----------------+--------------------------+-----------------
x   .   . .    |    2 | 3600    *    * |    2    2    0    0    0 |   1   2    1   0
.   x   . .    |    2 |    * 7200    * |    1    0    1    1    0 |   1   1    0   1
.   .   . x    |    2 |    *    * 7200 |    0    1    0    1    1 |   0   1    1   1
---------------+------+----------------+--------------------------+-----------------
x5/3x   . .    |   10 |    5    5    0 | 1440    *    *    *    * |   1   1    0   0
x   .   . x    |    4 |    2    0    2 |    * 3600    *    *    * |   0   1    1   0
.   x5/4o .    |    5 |    0    5    0 |    *    * 1440    *    * |   1   0    0   1
.   x   . x5*b |   10 |    0    5    5 |    *    *    * 1440    * |   0   1    0   1
.   .   o3x    |    3 |    0    0    3 |    *    *    *    * 2400 |   0   0    1   1
---------------+------+----------------+--------------------------+-----------------
x5/3x5/4o .       60 |   30   60    0 |   12    0   12    0    0 | 120   *    *   *
x5/3x   . x5*b   120 |   60   60   60 |   12   30    0   12    0 |   * 120    *   *
x   .   o3x        6 |    3    0    6 |    0    3    0    0    2 |   *   * 1200   *
.   x5/4o3x5*b    60 |    0   60   60 |    0    0   12   12   20 |   *   *    * 120
