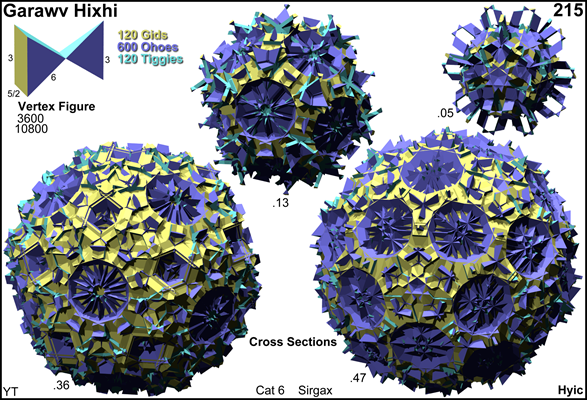

Acronym garawv hixhi
Name great retrosphenoverted hecatonicosihexacosihecatonicosachoron
Circumradius sqrt[19-8 sqrt(5)] = 1.054256
Colonel of regiment sirgax
Face vector 3600, 10800, 7440, 840
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope garawv hixhi is isomorphic to srawv hixhi, thereby replacing pentagrams by pentagons, respectively tiggy by ti and gid by id.


Incidence matrix according to Dynkin symbol

o5/2x3x3o3/2*b

.   . . .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o5/2x . .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x . o3/2*b |    3 |    3    0 |    *    * 2400    * |   0   1   1
.   . x3o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/2x3x .         60 |   60   30 |   12   20    0    0 | 120   *   *
o5/2x . o3/2*b    30 |   60    0 |   12    0   20    0 |   * 120   *
.   x3x3o3/2*b    12 |   12   12 |    0    4    4    4 |   *   * 600

o5/2x3x3/2o3*b

.   . .   .    | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o5/2x .   .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x .   o3*b |    3 |    3    0 |    *    * 2400    * |   0   1   1
.   . x3/2o    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/2x3x   .       60 |   60   30 |   12   20    0    0 | 120   *   *
o5/2x .   o3*b    30 |   60    0 |   12    0   20    0 |   * 120   *
.   x3x3/2o3*b    12 |   12   12 |    0    4    4    4 |   *   * 600

o5/3x3x3o3/2*b

.   . . .      | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
.   x . .      |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x .      |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o5/3x . .      |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x3x .      |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x . o3/2*b |    3 |    3    0 |    *    * 2400    * |   0   1   1
.   . x3o      |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/3x3x .         60 |   60   30 |   12   20    0    0 | 120   *   *
o5/3x . o3/2*b    30 |   60    0 |   12    0   20    0 |   * 120   *
.   x3x3o3/2*b    12 |   12   12 |    0    4    4    4 |   *   * 600

o5/3x3x3/2o3*b

.   . .   .    | 3600 |    4    2 |    2    4    2    1 |   2   1   2
---------------+------+-----------+---------------------+------------
.   x .   .    |    2 | 7200    * |    1    1    1    0 |   1   1   1
.   . x   .    |    2 |    * 3600 |    0    2    0    1 |   1   0   2
---------------+------+-----------+---------------------+------------
o5/3x .   .    |    5 |    5    0 | 1440    *    *    * |   1   1   0
.   x3x   .    |    6 |    3    3 |    * 2400    *    * |   1   0   1
.   x .   o3*b |    3 |    3    0 |    *    * 2400    * |   0   1   1
.   . x3/2o    |    3 |    0    3 |    *    *    * 1200 |   0   0   2
---------------+------+-----------+---------------------+------------
o5/3x3x   .       60 |   60   30 |   12   20    0    0 | 120   *   *
o5/3x .   o3*b    30 |   60    0 |   12    0   20    0 |   * 120   *
.   x3x3/2o3*b    12 |   12   12 |    0    4    4    4 |   *   * 600
