Acronym iquipadah
Name inverted quasiprismatodishexadecachoron

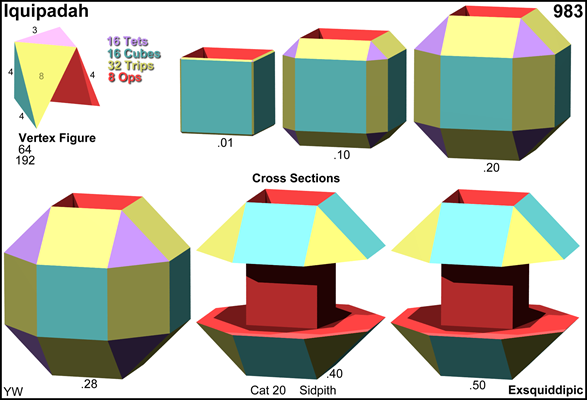

Cross sections
 ©
Circumradius sqrt[(3+sqrt(2))/2] = 1.485633
Coordinates ((1+sqrt(2))/2, 1/2, 1/2, 1/2)   & all permutations, all changes of sign
General of army sidpith
Colonel of regiment sidpith
Face vector 64, 192, 200, 72
Confer
uniform relative:
sidpith   sodip
compound relative:
sople
External
links
hedrondude   polytopewiki   WikiChoron

Iquipadah is nothing but the blend of sidpith with sople.

As abstract polytope iquipadah is isomorphic to gaquipadah, thereby replacing octagons by octagrams, resp. op by stop.


Incidence matrix

64 |  2  1  1  2 |  3  4  2  2 1 |  1  3  2 2
---+-------------+---------------+-----------
 2 | 64  *  *  * |  2  2  0  0 0 |  1  2  1 0
 2 |  * 32  *  * |  2  0  2  0 1 |  1  2  0 2
 2 |  *  * 32  * |  0  2  0  2 1 |  0  1  2 2
 2 |  *  *  * 64 |  0  1  1  1 0 |  0  1  1 1
---+-------------+---------------+-----------
 3 |  2  1  0  0 | 64  *  *  * * |  1  1  0 0
 4 |  2  0  1  1 |  * 64  *  * * |  0  1  1 0
 4 |  0  2  0  2 |  *  * 32  * * |  0  1  0 1
 4 |  0  0  2  2 |  *  *  * 32 * |  0  0  1 1
 8 |  0  4  4  0 |  *  *  *  * 8 |  0  0  0 2
---+-------------+---------------+-----------
 4 |  4  2  0  0 |  4  0  0  0 0 | 16  *  * *  tet
 6 |  4  2  1  2 |  2  2  1  0 0 |  * 32  * *  trip
 8 |  4  0  4  4 |  0  4  0  2 0 |  *  * 16 *  cube
16 |  0  8  8  8 |  0  0  4  4 2 |  *  *  * 8  op
